Usage: Used for low pressure liquid delivery, such as water, gas, and oil.
Process:

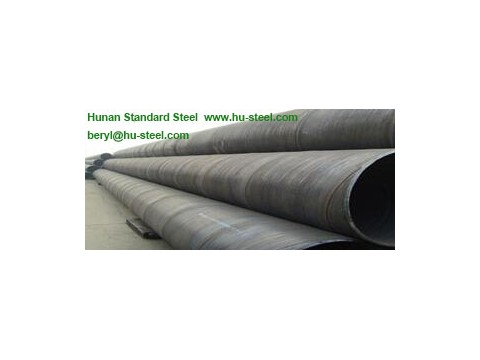

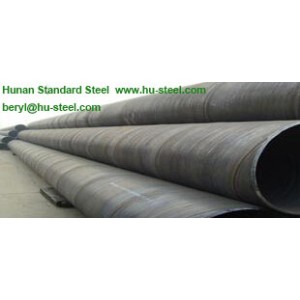

SSAW: Spiral Submerged-arc Welded
Quality Standard:
GB/T3091 Welded steel pipe for low pressure liquid delivery
GB/T9711 Petroleum and natural gas industries--Steel pipe for pipelines
IS: 3589 Steel tubes for water and sewage
IS : 1978-1982:Steel tubes for use in transportation of oil; gas & Petroleum products
ASTM A53 Standard Specification for Pipe, Steel, Black and Hot-Dipped, Zinc-Coated, Welded and
Seamless
DIN 2458 WELDED STEEL PIPES AND TUBES
EN10217 Welded steel tubes for pressure purposes. Technical delivery conditions. Non-alloy
steel tubes with specified room temperature properties
API 5L Line Pipe
SY/T5037 Spiral submerged arc-welded steel pipe for pipelines for low pressure field fluid
service
SY/T 5040 Spiral submerged arc-welded steel pipe piles
CJ/T 3022 Spiral submerged-arc welded steel pipe for municipal heat supply
IS : 1978 Steel tubes for use in transportation of oil; gas & Petroleum products
ASTM A252 WELDED AND SEAMLESS STEEL PIPE PILES
Coating Standard:
ANSI/AWWA C104/A21.4 American National Standard for Cement-Mortar Lining for Ductile-Iron Pipe
and Fittings for Water
ISO 21809 Petroleum and natural gas industries -- External coatings for buried or submerged
pipelines used in pipeline transportation systems
DIN 30670 Polyethylen coatings of steel pipes and fittings
Steel Grade:
BS:1387, EN10217:S185, S235,S235JR, S235 G2H, S275, S275JR, S355JRH, S355J2H, St12, St13,
St14, St33, St37, St44, ST52
ASTM A 53: Gr. A, Gr B, Gr C, Gr.D
API 5L: A, B, X42, X46, X52, X56, X60, X65 X70
GB/T9711: L175, L210, L245, L290, L320, L360, L290, L320, L360, L390, L415, L450, L485, L555
GB/T3091, SY/T5037, SY/T 5040,CJ/T 3022:Q195, Q215, Q235, Q275, Q295, Q345, 08F, 08, 08AL,
08F, 10F, 10, HG5, DF08 SPHC, M8
Size:
SAW SSAW:
Outer Diamter: 219.1mm - 4064mm (8" - 160")
Wall Thickness: 3.2 mm - 40mm
Length: 6mtr-18mtr
