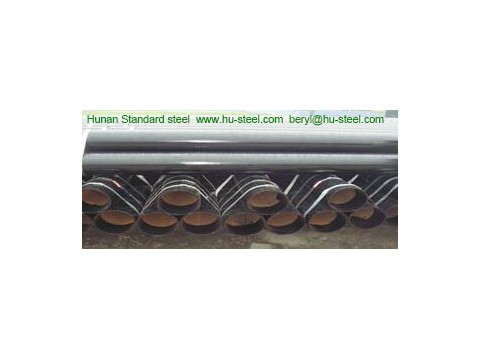

Usage: Used for low pressure liquid delivery, such as water, gas, and oil.
Process:
ERW (Electric Resistance Welded)
HFI (High Frequency Induction)
EFW(ELECTRIC FUSION WELDED TUBE)
HFW(High-Frequency Welding)
Quality Standard:
ERW HFI , EFW,:
IS: 3589 Steel tubes for water and sewage
IS : 1978-1982? Steel tubes for use in transportation of oil; gas & Petroleum products?
BS: 1387 Steel Tubes for use for Water, Gas, Air and Steam
ASTM A53 Standard Specification for Pipe, Steel, Black and Hot-Dipped, Zinc-Coated, Welded and
Seamless
DIN 2458 WELDED STEEL PIPES AND TUBES
EN10217 Welded steel tubes for pressure purposes. Technical delivery conditions. Non-alloy
steel tubes with specified room temperature properties
API 5L Line Pipe
Coating Standard:
ANSI/AWWA C104/A21.4 American National Standard for Cement-Mortar Lining for Ductile-Iron Pipe
and Fittings for Water
ISO 21809 Petroleum and natural gas industries -- External coatings for buried or submerged
pipelines used in pipeline transportation systems
DIN 30670 Polyethylen coatings of steel pipes and fittings
Steel Grade:
BS:1387, EN10217:S185, S235,S235JR, S235 G2H, S275, S275JR, S355JRH, S355J2H, St12, St13,
St14, St33, St37, St44, ST52
ASTM A 53: Gr. A, Gr B, Gr C, Gr.D
API 5L: A, B, X42, X46, X52, X56, X60, X65 X70
GB/T9711: L175, L210, L245, L290, L320, L360, L290, L320, L360, L390, L415, L450, L485, L555
GB/T3091, SY/T5037, SY/T 5040,CJ/T 3022:Q195, Q215, Q235, Q275, Q295, Q345, 08F, 08, 08AL,
08F, 10F, 10, HG5, DF08 SPHC, M8
Size:
ERW, HFI, EFW:
Outer Diameter: 6mm-610mm (1/16"-24")
Wall Thickness: 0.3mm-22mm
Length: 0.5mtr-20mtr
End:square ends (straight cut, saw cut, and torch cut). or beveled for welding, beveled,
Surface: Lightly oiled, Hot dip galvanized, Electro galvanized, Black, Bare, Varnish
coating/Anti rust oil, Protective Coatings (Coal Tar Epoxy,? Fusion Bond Epoxy, 3-layers PE)
Packing:Plastic plugs in both ends, Hexagonal bundles of max. 2,000kg with several steel
strips, Two tags on each bundle, Wrapped in waterproof paper, PVC sleeve, and sackcloth with
several steel strips, Plastic caps.
Test:Chemical Component Analysis, Mechanical Properties (Ultimate tensile strength, Yield
strength, Elongation), Technical Properties (Flattening Test, Bending Test, Blow Test, Impact
Test), Exterior Size Inspection, Hydrostatic Test, X-ray Test.
Mill Test Certificate:EN 10204/3.1B
Third party inspection:SGS, BV, Lloyds etc.
