configuration, easy to install, and special valve pin design for lead pressure port, perfect electrical
performance and long-term stability make it the idea choice for the air-condition and compressor
pressure measuring and controlling. This series can replac the similar type of other products, and it can
meet the requirement of various compressors and refrigeration equipments.
performance and long-term stability make it the idea choice for the air-condition and compressor
pressure measuring and controlling. This series can replac the similar type of other products, and it can
meet the requirement of various compressors and refrigeration equipments.

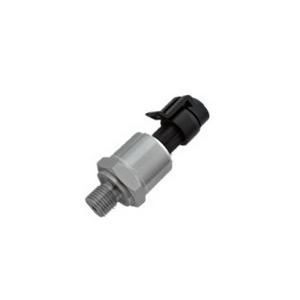

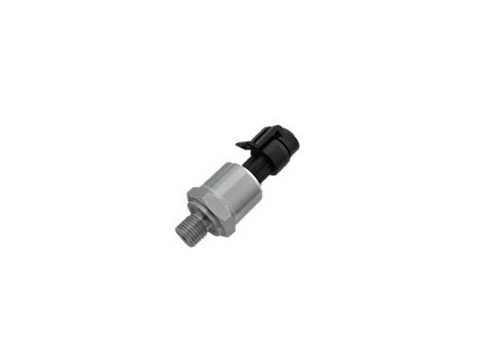

What is the technical parameters of china manufacturer Air conditioning pressure sensor ?
Range: 0….1bar to 0….60bar
Accuracy: 0.25%FS, 0.5%FS;1%FS
Linear: 0.02%FS
Reliability: 0.05%FS
Output: 0.5-4.5V;0-5V ;1-5V;4-20mA,
Input Voltage: 24(5-36V)DC
Operation Temperature: -10℃~125℃
Compensation Temperature: -10~70℃(Standard compensation)
Over Pressure: 150%FS
Housing material: 316L SS
Electric Connection: Packard connector
Process Connection: Z1/4, 1/4NPT, 1/8NPT (Optional)
Accuracy: 0.25%FS, 0.5%FS;1%FS
Linear: 0.02%FS
Reliability: 0.05%FS
Output: 0.5-4.5V;0-5V ;1-5V;4-20mA,
Input Voltage: 24(5-36V)DC
Operation Temperature: -10℃~125℃
Compensation Temperature: -10~70℃(Standard compensation)
Over Pressure: 150%FS
Housing material: 316L SS
Electric Connection: Packard connector
Process Connection: Z1/4, 1/4NPT, 1/8NPT (Optional)
What is the features of china manufacturer Air conditioning pressure sensor ?
Superior long term stability
Temperature compensated over wide range
Low power consumption
Excellent repeatability/Hysteresis
Special design for customer
Many OEM options
Temperature compensated over wide range
Low power consumption
Excellent repeatability/Hysteresis
Special design for customer
Many OEM options
What is the applications of china manufacturer Air conditioning pressure sensor ?
Laboratory test apparatus
Agricultural chemical equipment
Refrigeration and HVAC systems
Hydraulic system
Gas tank pressure monitoring
Coolant pressure
Agricultural chemical equipment
Refrigeration and HVAC systems
Hydraulic system
Gas tank pressure monitoring
Coolant pressure
