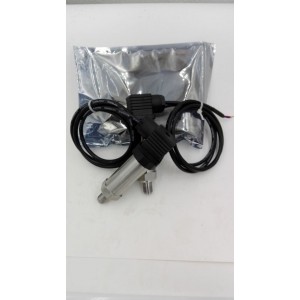

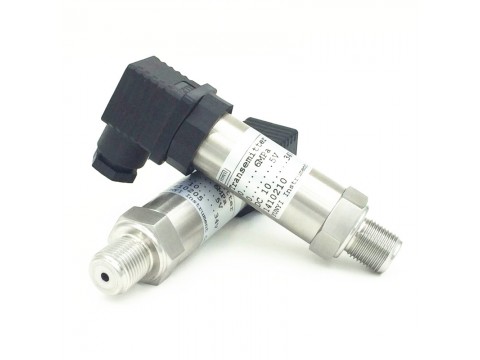

Pressure Transmitter

1.Measuring media: oil, water, gas and other media compatible with 316L stainless steel
2.Sensor: Stainless diffused silicon
3.Range: Gas: -0.1MPa ~ 0 ~ 100MPa; minimum range: 0 ~ 1KPa (clean air)
Liquid: -0.1MPa ~ 0 ~ 100MPa; minimum range: 0 ~ 5KPa
Positive and negative pressure type: ± 1KPa (clean gas); ± 10KPa (liquid); maximum: -0.1 ~ 70MPa (custom)
3.Pressure: 2 times the range (10MPa or less, more may contact); 1.5 times the range (10MPa or more, higher may contact)
4.Accuracy: ± 0.25% FS
5.Nonlinear: <± 0.2% FS
6.Hysteresis and repeatability: ≤ ± 0.1% FS
7.Long-term stability: ≤ ± 0.1% FS / year
8.Zero drift: ≤ ± 0.02% FS / ℃
9.Response time: ≤500ms (standard)

Electrical parameters:
1.Output: current 2-wire: 4 ~ 20mA
2.3-wire voltage: 0 ~ 5V; 0 ~ 10V; 1 ~ 5V; 1 ~ 10V
3.Supply voltage: DC24V (12 ~ 32VDC, less may contact)
4.Load capacity: current output: ≤ 500Ω
5.Voltage output: ≤ 250Ω output impedance
6.Electrical connection: Standard for HE Mann, optional direct outlet or custom

Materials:
1.Wetted parts: 316L stainless steel
2.Shell: 304
3.Seals: Viton, optional: EPOM, NBR
4.Diaphragm: 316L stainless steel

Other specifications:

1.Process connection: M20 × 1.5 external thread (standard) (optional other connections)

2.Material: 316L stainless steel wetted materials; Shell: 304

3.Protection class: IP 65
4.Medium temperature: -30 ~ 80 ℃
5.Ambient temperature: -40 ~ 80 ℃
6.Storage temperature: -40 ~ 100 ℃
7.Earthquake: 108 RMS (25 ~ 2000HZ)
8.Ex: Ex ia IIC T6 intrinsically safe
9.Current Limit: The maximum current-24mA; voltage-largest 5mA
10.Certification: CE, ISO
11.Installation position: vertical installation is recommended, as there will be other installation extremely slight zero offset

Features:

1.Digital ASIC, accuracy and stability
2.Drift affect small
3.Excellent long-term stability
4.Excellent anti-jamming capability
5.Overvoltage overcurrent protection, reverse polarity protection
6.Excellent selection of imported sensors core

Product Dimensions:
