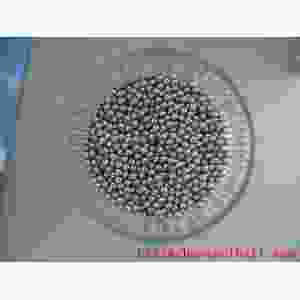

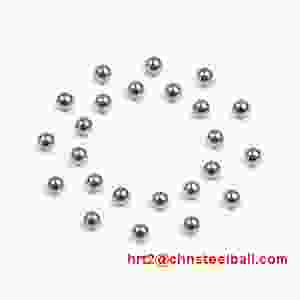

0.5mm-50.8mm SS440/SS440C Stainless Steel Ball G5-G1000
1) Material: SS440/440C Stainless Steel
2) Size:0.5.mm-50.8mm
3) Grade:G5/G10/G25/G50/G100/G1000(Grade Standard Comply with AFMBA.10 or DIN 5401.)
4) Hardness:HRC58-65.
5) Certificate:ISO-9001, TS-16949
6) Feature: Good wear-resisting property and corrosion resistance, with higher rust resistance and hardness than AISI420.
7) Application: Bearing which require corrosion resistance, such as hydraulic parts, grinding machines,petrochemical industry, and etc.
OUR ADVANTAGES
1) Good preformance- 0 customer complain in the past 6 months
2) Strick quality control- ISO9001, TS16949, ISO14001
3) Advanced equipment- full set of quality inspection equipment, precision roller sorting machine(developped by ourselves), photo defectoscope
4) Puntual delivery
PERCIFICATIONS
| Grade | Variation of Ball Diameter VDws |
Deviation from Spherical Form △Sph |
Variation of Ball Lot Diameter VDwl |
Surface roughness Ra |
| G5 | 0.13 | 0.13 | 0.25 | 0.014 |
| G10 | 0.25 | 0.25 | 0.5 | 0.02 |
| G16 | 0.4 | 0.4 | 0.8 | 0.025 |
| G20 | 0.5 | 0.5 | 1 | 0.032 |
| G24 | 0.6 | 0.6 | 1.2 | 0.04 |
| G28 | 0.7 | 0.7 | 1.4 | 0.05 |
| G40 | 1 | 1 | 2 | 0.06 |
| G60 | 1.5 | 1.5 | 3 | 0.08 |
| G100 | 2.5 | 2.5 | 5 | 0.1 |
| G200 | 5 | 5 | 10 | 0.15 |
| G500 | 12.5 | 12.5 | 25 | |
| G1000 | 25 | 25 | 50 |
