Generator set: Model: ETCG800
Engine Mode: KTA38-G2
Prime Power: 750kVA/600KW
Standby Power: 800kVA/660KW
Options for the diesel generaor set:

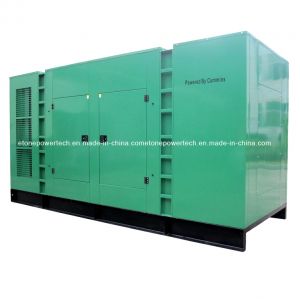

Soundproof canopy type, trailer type
50Hz/60Hz, 1500rpm/1800rpm
Single phase/three phase four lines
Generator set feature:
Engine Features:
* Super power, PT fuel system, ultra-high injection pressure, sufficent combustion, low fuel consumption and good economic performances.
* Replaceable wet cylinder sleeves, effective cooling system, good spare parts commonality, high product serialization, easy maintenance and low failure.
Diesel Engine Type:
* Working cycle: Four-strokes
* Combustion model: Direct injection
* Starting way: DC Batteries
* Cooling way: Radiator with fan & water tank
The Electrical Performance of Diesel Generator Sets
* Power factor: 0.8(lagging)
* Connection way: Three phase four lines
* Ambient temperature: -40C~52C
* Steady voltage regulation rate: ± 1%; Transient voltage regulation rate: +20~-15%
* Steady frequency regulation rate: ± 1%; Transient frequency regulation rate: +10~--7%
* Voltage fluctuation rate: 0.5%
* Frequency fluctuation rate: 0.5%
AC Alternator
* Standard brands: Etone, Leroy Somer
* Optional brands: Marathon\Stamford
* Excitation method: Brushless self-excitation
* Isulation grade: H
* Protection grade: IP21-IP23
* Electromagnetic interference: THF<2%, TIF<50
Control System
* Standard matching brands: Smartgen and Comap
* Optional brands: Harson, Deepsea
* LED/Graphics/meters indicate unit running parameters
* High water temperature, low oil pressure, low speed, overspeed and others alarm and protected
* Automatically start switching when the main power service fails(optional)
* Multi-gensets with automatic parallel connection control module(optional)
* Functions of remote control interface, remote control, remote test and remote signal(optional)
Item | Output(KW) | Engine Model | Dimension(L*W*H)mm | Weight (KG) |
ETCFJ150 | 150 | NT855-DM | 2550*980*2250 | 2900 |
ETCFJ180 | 180 | NT855-DM | 2550*980*2250 | 2900 |
ETCFJ200 | 200 | NTA855-DM | 2580*980*2290 | 3100 |
ETCFJ250 | 250 | NTA855-DM | 2620*980*2290 | 3180 |
ETCFJ270 | 270 | NTA855-DM | 2650*1000*2300 | 3250 |
ETCFJ280 | 280 | NAT855-DM | 2650*1000*2300 | 3250 |
ETCFJ300 | 300 | KTA19-DM | 3100*950*2080 | 3750 |
ETCFJ350 | 350 | KTA19-DM | 3150*1000*2150 | 3850 |
ETCFJ400 | 400 | KTA19-DM | 3150*1000*2150 | 3950 |
ETCFJ500 | 500 | KT38-DM | 4100*1650*2200 | 6200 |
ETCFJ600 | 600 | KTA38-DM | 4100*1650*2200 | 6300 |
ETCFJC40 | 40 | 4BTA3.9-GM47 | 1500*750*1320 | 1000 |
ETCFJC50 | 50 | 4BTA3.9-GM47 | 1500*750*1320 | 1000 |
ETCFJC64 | 64 | 6BT5.9-GM83 | 1850*820*1350 | 1200 |
ETCFJC70 | 70 | 6BT5.9-GM83 | 1850*820*1350 | 1250 |
ETCFJC80 | 80 | 6BTA5.9-GM100 | 1900*850*1400 | 1300 |
ETCFJC90 | 90 | 6CT8.3-GM115 | 1900*850*1400 | 1350 |
ETCFJC100 | 100 | 6CT8.3-GM115 | 2100*800*1360 | 1650 |
ETCFJC120 | 120 | 6CTA8.3-GM155 | 2100*800*1360 | 1750 |
ETCFJC150 | 150 | 6LTAA8.9-GM200 | 2400*900*1400 | 1950 |
ETCFJC720 | 720 | KTA8-DM | 4150*1650*2200 | 6500 |
ETCFJC800 | 800 | KTA38-DM | 4200*1700*2350 | 7000 |
