New Auto Drain Valve AD402-A

   2017-06-11 860
核心提示:Higher resistance to foreign matter Increase in condensate discharge Drain discharge: Max.100 cm3/cycle (3 times compared with the current model) Better environmental resistance: Transparent bowl guard can protect the inner bowl! Better visibility: 36


Please contact :-
Gentle Automatic Solution Sdn Bhd
Tel: +603-8023 7743 / 8743
Fax:+603-80239743
Email enquary :-
sales@gentle.com.my / go2mgp@gmail.com


For more Pneumatic Tools components, please visit https://www.gentle.com.my

I've sent you a location: Gentle Automatic Solution Sdn Bhd

Drive there using Waze: https://waze.to/lr/hw28325k63

Download Waze, a free traffic & navigation app: http://bit.ly/GetWaze


AD402-A, Auto Drain Valve

AD402-A, Auto Drain Valve

The AD402-A is the improved version of SMC's proven AD402 auto drain design.  These enhancements include an improved resistance to foreign matter, increased discharge rate and reduced weight.

  • Improved environmental resistance with transparent bowl guard

  • 360° visibility of bowl contents

  • Reduced maintenance space and easier maintenance

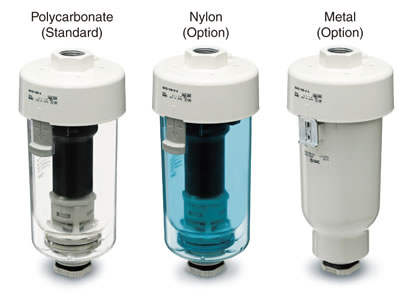

  • Now with three bowl material choices: polycarbonate, nylon (new), aluminum


Product Features

■Longer life & Higher resistance to foreign matter

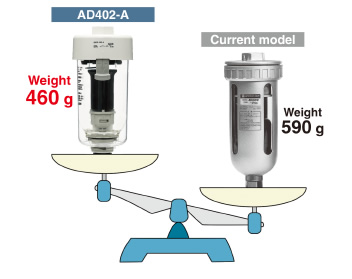

■Lightweight

Resin bowl guard has reduced the weight by 22%

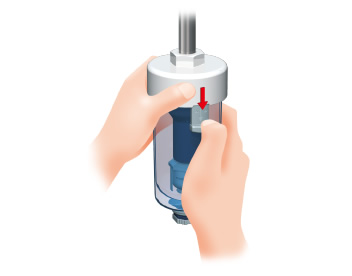

■Easier maintenance

One-touch mounting and removal of the bowl is possible without using a tool.

Release the lock by sliding the lock button down while holding the body.
Then, rotate the bowl guard and pull down for removal.

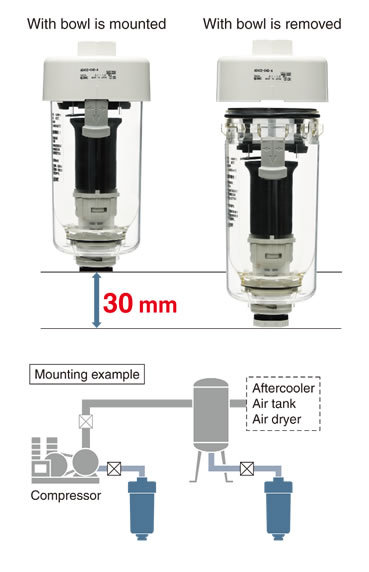

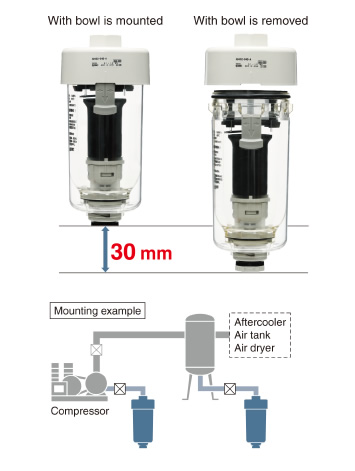

■Reduced required maintenance space

only 30 mm of space is required underneath for maintenance, allowing more compact installation.

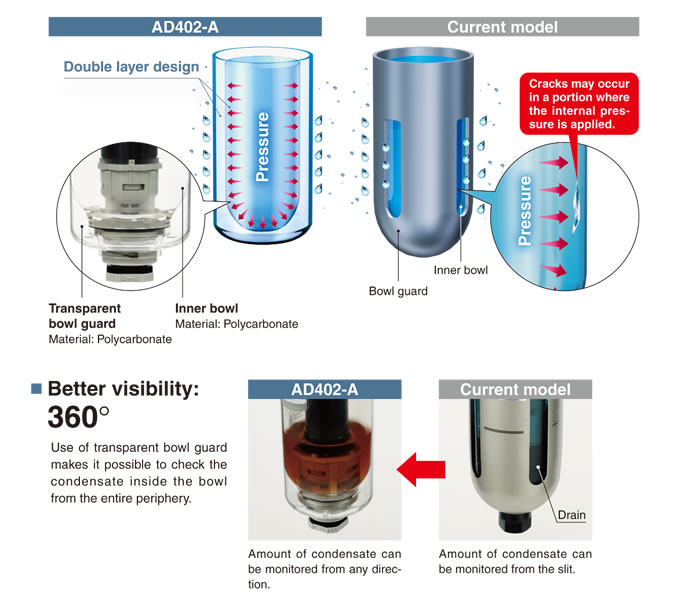

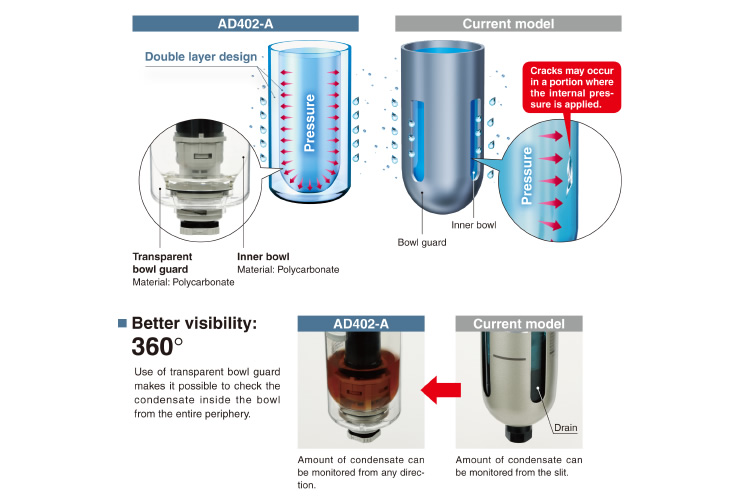

■Transparent bowl guard

Better environmental resistance: Transparent bowl guard can protect the inner bowl!

Windows on the bowl guard have been removed and the inner bowl is instead covered with a polycarbonate transparent bowl guard. Now, even if the environment changes and the bowl is exposed to corrosive chemical or oil splash, the foreign matter will not stick directly to the pressurized bowl. This can reduce risk of bowl breakage.

■Options

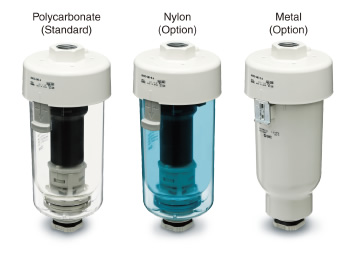

Bowl material can be selected according to the operating environments.

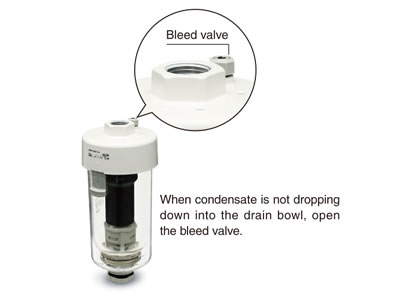

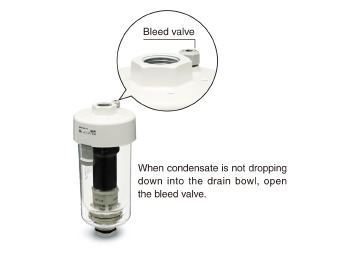

Bleed valve equipped type can be selected.
