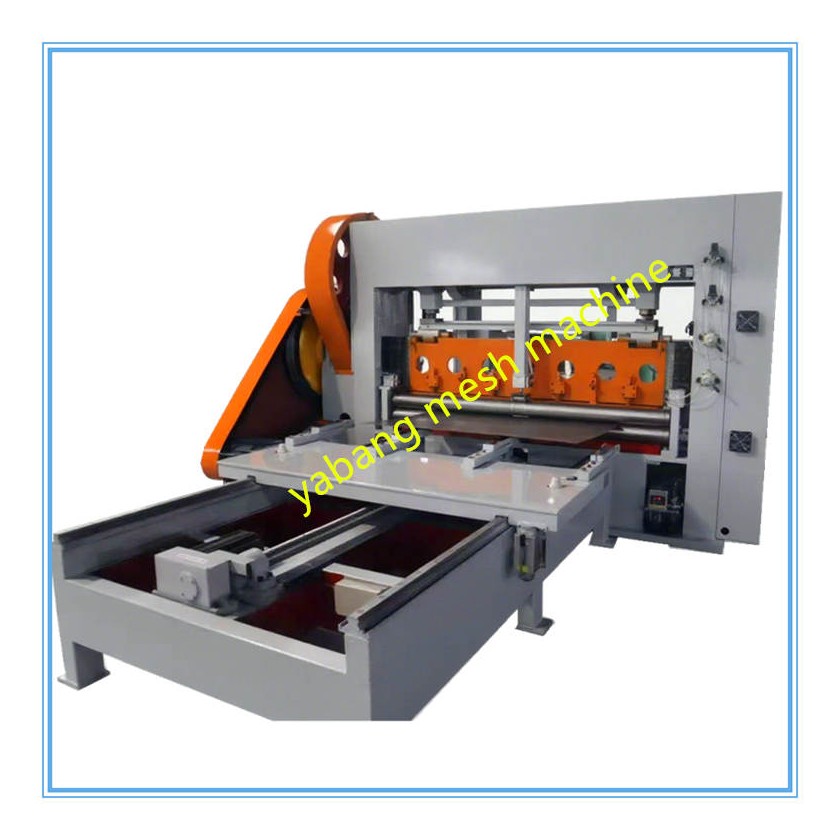

Automatic Expanded metal mesh machine is a special equipment used to produce expanded metal mesh (also known as expanded mesh, diamond mesh). Its working principle is to process metal plates (such as low carbon steel plates, stainless steel plates, aluminum plates, etc.) into a mesh structure with diamond or other hole shapes through mechanical stamping and stretching.
Parameters:
Type | JQ25-6.3 | JQ25-16 | JQ25-25 | JQ25-40 | JQ25-63 | JQ25-100 |
Material thickness(mm) | Max1.0 | Max1.0 | Max1.5 | Max2.5 | Max4.0 | Max6.0 |
Net width(mm) | Max600 | Max1000 | Max1250 | Max1500 | Max2000 | Max2500 |
Punching times/min | 180 | 160 | 160 | 80 | 67 | 55 |
Feeding distance(mm) | 0-10 | 0-10 | 0-10 | 0-10 | 0-20 | 0-20 |
Length of mesh(mm) | Max20 | Max25 | Max30 | Max80 | Max200 | Max200 |
Motor power(kw) | 2.2 | 3.0 | 4.0 | 11.0 | 11.0 | 15.0 |
Weigth(T) | 0.95 | 2 | 3 | 6 | 10 | 12 |
The advantages of expanded metal machine designed and produced by our factory includes:This machine adopts the mature technologies of the past as well as new technologies such as:full-automatic lubricating, NC stepping motor feeding, etc, ;it has good effect;controllability, stability and safety has been greatly increased;it has reasonable structure, elegant appearance, it is environmental production and energy saving, it is suitable for the material as low carbon steel sheet, aluminium sheet, stainless steel sheet, aluminium magnesium alloy sheet, copper sheet, nickel sheet.
