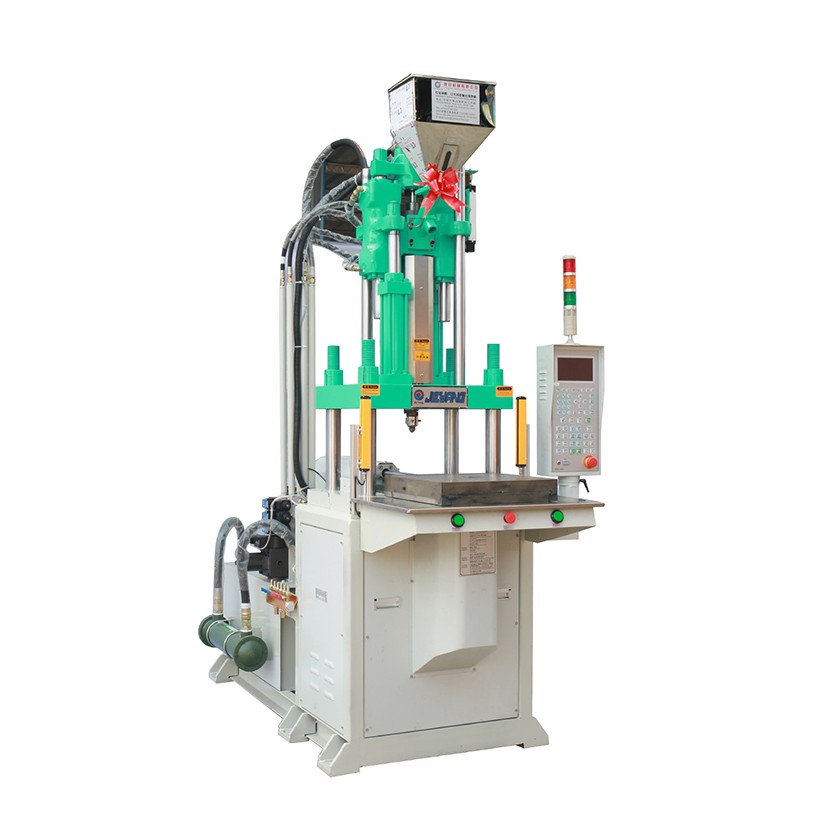

The Single Sliding Table Plastic Injection Machine is designed to deliver high-performance injection molding with precision and reliability. Ideal for manufacturing a wide range of plastic components, this machine is perfect for industries including automotive, electronics, household appliances, and packaging.
1.In ST(standard) machine installs single sliding mold.after operates the mold to complete, the stamping die automatically slips to the operator front, is advantageous for the operation,the security is high also the end product goes against also completes in exterior.
2.The multistage temperature control,the multistage projects the pressure with to project the speed,projects the back pressure not to have the section adjustment,suits each kind of precise revertex components taking shape.(Engineering plastics).
3.The screw rod L/D ratio is big,is suitable the special engineering plastics.
4.May expand the computer formula and the automation takes out inserts the equipment segment,may achieve the entire automaton the design.
5.Closed mold the straight pressure formula under lock mold cylinder design can fast drop gathers the mold and the idling speed lowly press fits the mold,to the mold service life,can be lasting.
6.Projects uses the two-cylinder balance-like to project the system,projects steadily is Powerful.
7.Electrically controlled may move the gang to bond the demonstration,the convenient gang bonds removes with the service.
8.Servo motor series can be selected according to customer needs.
9.Screw and clamping force force can be selected to use.
Injection molding machine specifications
Model | Unit | JY-550ST-D | ||
Screw Diameter | mm | 32 | 36 | 40 |
Theoretical Injection Volume | cm3 | 128.6 | 162.7 | 226 |
Injection Weight(PS) | g(oz) | 121.5(4.28) | 153.8(5.4) | 201(7.08) |
Max. Injection Pressure | Mpa(kgf/cm2) | 201(2050) | 158.8(1620) | 128.6(1312) |
Injection Rate | cm3/s | 70.7 | 89.5 | 110.5 |
Injection Speed | mm/s | 88 | ||
Injection Stroke | mm | 160 | ||
Single Sliding Table Design: Optimized for easy operation and smooth mold opening/closing, ensuring consistent production quality.
High Precision Injection: Advanced control systems provide accurate injection speed and pressure, producing precise and consistent parts.
Durable Construction: Built with high-strength steel and reinforced components to ensure long-term stability and minimal maintenance.
User-Friendly Interface: Digital control panel allows operators to easily monitor and adjust parameters for various molding requirements.
Versatile Applications: Suitable for molding small to medium-sized plastic products, including complex shapes and delicate components.
