1. The basic performance is completely consistent with the U2205GS V11 black and white products

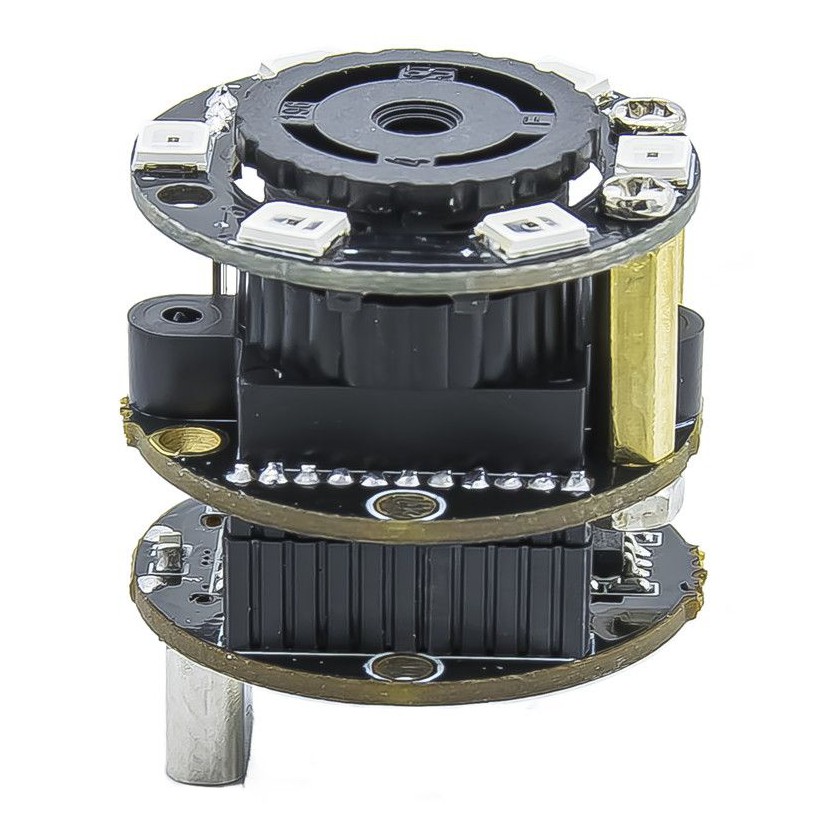

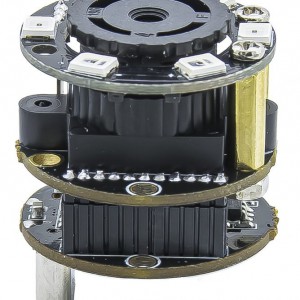

2. Black and white images+night vision infrared light board
3. Default 850nm infrared light board on the external shelf (with a light angle of 120 degrees and customizable light angles and bands), with the light board on and off in the picture
4. The lens can be customized with different bands and bandwidths of IR according to the infrared light selection
5. Customized items are charged or free according to actual conditions
6. Mainly used for quickly capturing circular pipeline walls, short distances, and macro distances (low-power infrared light is too far and not enough)
2 million pixels global exposure black and white camera module high-speed capture, scanning, recognition equipment, embedded built-in camera modules such as circular holes, pipes, and shell materials+infrared night vision light board.
Circular size: R=22 * 24.7 ± 0.5 MM
Product chip: OG02B1B (1/2.9 '')
Maximum resolution, format, frame rate: 1600X1200 MJPEG 60FPS
Maximum viewing angle: 96 ° without distortion
Sample with testing line TYPE-C 1 meter
Module No. | HBVCAM-U2310GS V11 |
Module Size | R=22 * 24.7 ± 0.5 MM |
Temperature (Operation) | -30°C to 70°C |
Temperature (Stable Image) | 0°C to 50°C |
Assembly technique | SMT (ROSH) |
Focus | Fixed |
Object distance | 30CM-infinity |
Resolution | 600LW/PH (Center) |
PCB printing ink | Black |
interface | USB 2.0 |
Power suuply | USB bus power |
supply voltage | DC 5V±5% |
Maximum Power consumption | 890 mW |
Operating system request | Win XP/win 7、8 / vista /android 4.0/ mac /Linux with uvc |
Sensor | OG02B10 (1/2.9” ) |
Seneor Package | CSP,Bare Die |
Maximum resolution | 1600*1200 |
Sensitivity | 1900mV /（lux-sec） |
Pixel Size | 3.0µm x 3.0µm |
A 2MP Global Shutter Camera Module is a camera module with a 2-megapixel resolution that uses a global shutter sensor. This type of sensor captures an entire image at once, eliminating motion blur and providing clearer images of fast-moving objects.
