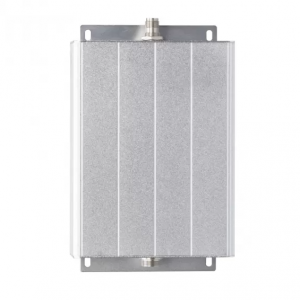

Ex10 Fixed Reader (1-Port)



单价 面议对比
询价 暂无
浏览 0
发货 AsiaChina付款后3天内
过期 长期有效
更新 2025-09-06 10:41

联系方式
加关注0

Shenzhen RoyalRay Science and Technology Co., Ltd.

Personal第1年
资料未认证
保证金未缴纳
  • Asia-China
  • 上次登录 09-05 10:44
  • 梁培健 (Mr.)
详细说明

RRU7881EA/ RRU5881EA/ RRU3881EA is a high-performance UHF RFID Reader. It is designed upon fully self-intellectual property. Based on proprietary efficient digital signal processing algorithm, it supports fast tag read/write operation with high identification rate. It can be widely applied in many RFID application systems such as logistics, access control, and industrial production process control system.

Ex10 Fixed Reader FEATURES

Self-intellectual property;

Designed with IMPINJ E710/E510/E310 and support ISO18000-6C(EPC C1G2) protocol tag, featuring excellent multi-tag anti-collision functionality;

865~868MHz/902~928MHz frequency band(frequency customization optional);

FHSS or Fix Frequency transmission;

RF output power up to 33dbm(adjustable);

Effective distance up to 12m*(with external 8dbi antenna and tag E41);

 Supports multiple working modes such as active mode and answer mode;

Low power dissipation with single +9~24VDC power supply;

Support RSSI;

Support RS232, RS485, Optional TCP/IP interface;

Support on-the-site firmware upgrading;

High reliability design, meet the requirements of harsh working environment;

Support DLL , demonstrate the software source code and secondary development.

Get more information




举报收藏 0评论 0
更多>本企业其它产品

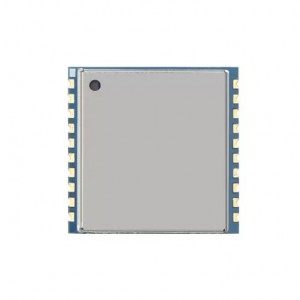

Ex10 UHF RFID Module (1-Port) Ex10 UHF RFID Module (4-Port) Ex10 UHF RFID Printer Module
