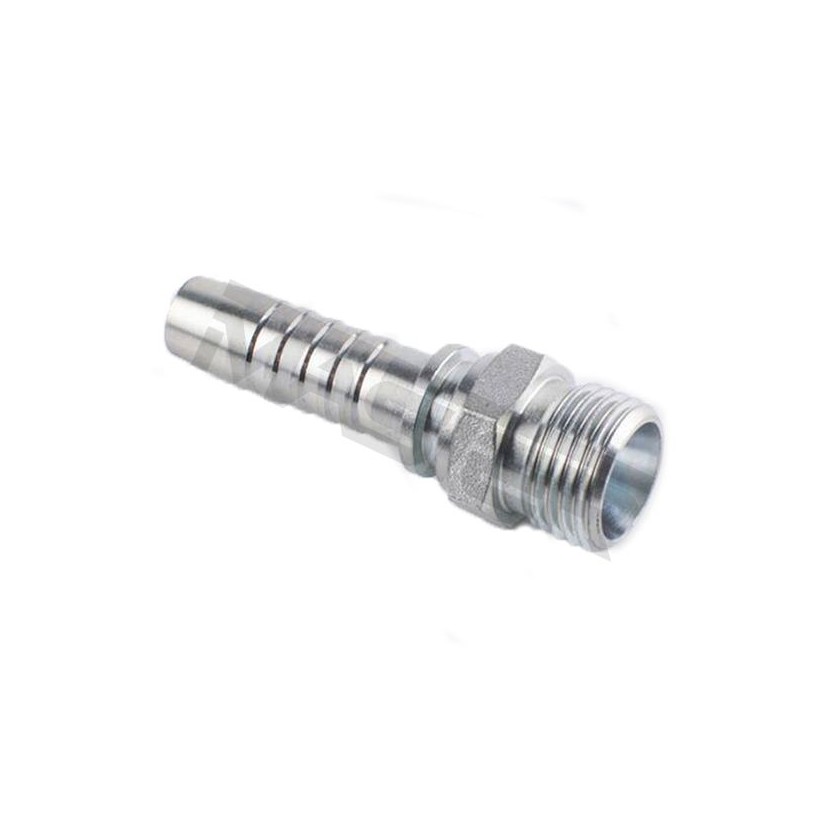

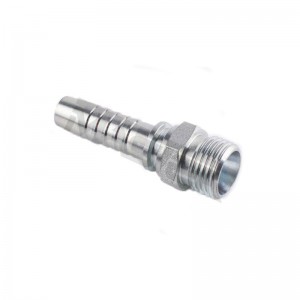

The 10611 male hydraulic fitting with a metric thread is designed with a 60-degree cone, which pairs perfectly with a matching 60-degree cone female thread. This configuration allows the tapered surfaces to create a tight and secure seal, ensuring reliable connection performance.
Product Parameter
PART NO. | THREAD E | HOSE BORE | DIMENSIONS | |||
DN | DASH | A | C | S1 | ||
10611-14-04 | M14*1.5 | 6 | 4 | 23.5 | 11 | 19 |
10611-14-06 | M14*1.5 | 10 | 6 | 24 | 11 | 19 |
10611-16-04 | M16*1.5 | 6 | 4 | 27.5 | 12 | 22 |
10611-16-05 | M16*1.5 | 8 | 5 | 26.5 | 12 | 22 |
10611-18-06 | M18*1.5 | 10 | 6 | 29.5 | 12 | 24 |
10611-22-06 | M22*1.5 | 10 | 6 | 30.5 | 14 | 27 |
10611-22-08 | M22*1.5 | 12 | 8 | 32 | 14 | 27 |
10611-24-10 | M24*1.5 | 16 | 10 | 35 | 14 | 30 |
10611-26-10 | M26*1.5 | 16 | 10 | 35 | 16 | 32 |
10611-27-10D | M27*1.5 | 16 | 10 | 35 | 16 | 32 |
10611-27-10 | M27*2 | 16 | 10 | 37 | 18 | 32 |
10611-30-12D | M30*1.5 | 20 | 12 | 38 | 18 | 36 |
10611-30-12 | M30*2 | 20 | 12 | 38 | 18 | 36 |
10611-33-16 | M33*2 | 25 | 16 | 43 | 20 | 46 |
10611-42-20 | M42*2 | 32 | 20 | 46 | 20 | 50 |
10611-45-20 | M45*2 | 32 | 20 | 46 | 20 | 55 |
10611-48-24 | M48*2 | 40 | 24 | 46 | 20 | 55 |
10611-52-24 | M52*2 | 40 | 24 | 46 | 20 | 60 |
MASTER is a professional manufacturer and supplier of 60 cone hydraulic fittings based in China. With over 30 years of experience in metric hydraulic fitting manufacturing, we deliver precision-engineered fittings designed to provide secure, leak-free connections in hydraulic systems. Our Metric Hose Fitting are widely trusted by distributors, assembly manufacturers, and OEMs globally.
