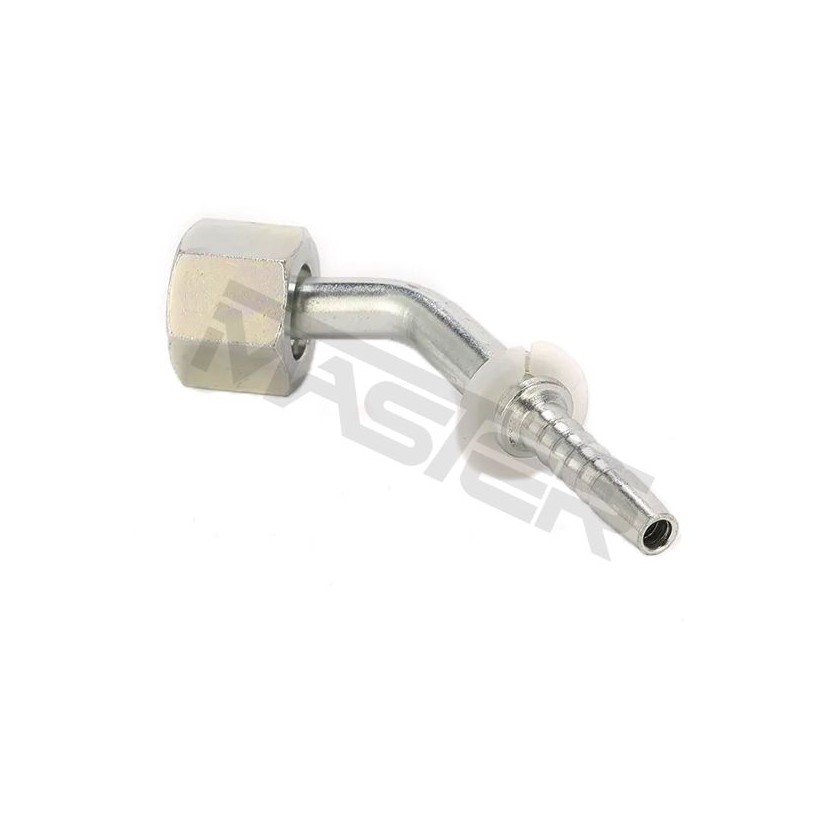

The 20141/20141-T 45-degree metric multiseal hose fitting is equipped with multiple types of seals that offer a reliable barrier to prevent leaks. These female multiseal fittings are designed to securely connect hydraulic hoses to fluid systems using a socket that incorporates several sealing elements.
Product Parameter
PART NO. | THREAD E | HOSE BORE | DIMENSIONS | ||||
DN | DASH | A | C | H | S2 | ||
20141-10-03 | M10*1 | 5 | 3 | 41.1 | 2.5 | 20.7 | 14 |
20141-10-04 | M10*1 | 6 | 4 | 43.2 | 2.5 | 21.5 | 14 |
20141-12-03 | M12*1.5 | 5 | 3 | 40.9 | 4 | 21.2 | 17 |
20141-12-04 | M12*1.5 | 6 | 4 | 43 | 4 | 22 | 17 |
20141-14-04 | M14*1.5 | 6 | 4 | 43.4 | 4.5 | 21.3 | 19 |
20141-14-05 | M14*1.5 | 8 | 5 | 45.5 | 4.5 | 22.2 | 19 |
20141-16-04 | M16*1.5 | 6 | 4 | 43.7 | 4.5 | 21.4 | 22 |
20141-16-05 | M16*1.5 | 8 | 5 | 45.8 | 4.5 | 22.5 | 22 |
20141-16-06 | M16*1.5 | 10 | 6 | 47.4 | 4.5 | 24.1 | 22 |
20141-18-05T | M18*1.5 | 8 | 5 | 46.8 | 4 | 22.6 | 24 |
20141-18-06 | M18*1.5 | 10 | 6 | 48.5 | 4 | 24.2 | 24 |
20141-18-08 | M18*1.5 | 12 | 8 | 52.2 | 4 | 25.7 | 24 |
20141-20-06T | M20*1.5 | 10 | 6 | 48.2 | 5.5 | 23.9 | 27 |
20141-20-08 | M20*1.5 | 12 | 8 | 62.1 | 5.5 | 27.2 | 27 |
20141-22-06T | M22*1.5 | 10 | 6 | 58.4 | 5 | 25.7 | 27 |
20141-22-08 | M22*1.5 | 12 | 8 | 62.1 | 5 | 27.2 | 27 |
20141-24-08T | M24*1.5 | 12 | 8 | 61.1 | 5.5 | 26.1 | 30 |
MASTER is a professional manufacturer and supplier of Multiseal Metric Fittings in China. With over 30 years of experience in metric hydraulic fitting production, we deliver high-quality metric fittings designed for reliable sealing and easy installation in hydraulic systems worldwide.
