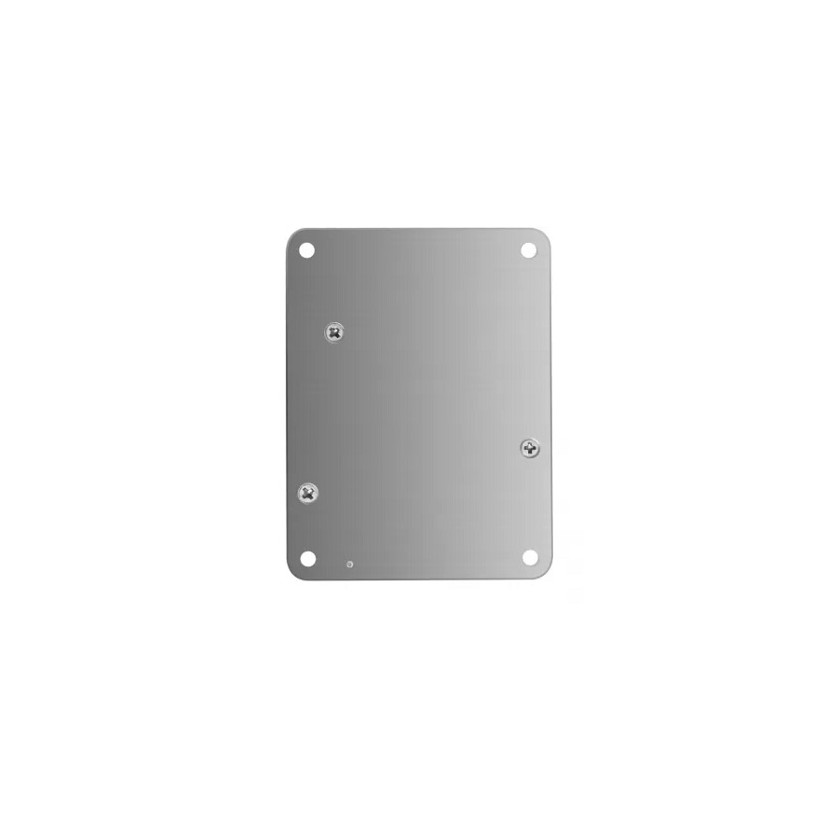

The RRUx403OMP UHF RFID Printer Module, powered by the IMPINJ E series chip, is specifically designed for RFID printers, supporting temperature sensor tags and embedded applications. Based on the IMPINJ E710 chip design and Gen2 Extension Ready, it features a proprietary orthogonal decomposition algorithm for precise label positioning and calibration, enabling seamless operation in complex printing environments with densely packed small labels. This Single Port Module easily adapts to various RFID printer structures across multiple scenarios, perfectly meeting comprehensive printing needs. Sub-versions based on the E510 and E310 chips are also available.
EATURES
Self-intellectual property;
Designed with IMPINJ E710/E510/E310 and support ISO18000-6C(EPC C1G2) protocol tag, featuring excellent multi-tag anti-collision functionality;
865~868MHz/902~928MHz frequency band(frequency customization optional);
FHSS or Fix Frequency transmission;
RF output power up to 30dbm(adjustable);
IPEX socket for external antenna;
Effective distance up to 10m*(with external 8dbi antenna and tag E41);
Maximum inventory speed* up to 1000pcs/s (using E710) or 600pcs/s (using E510) or 350 pcs/s (using E310);
Tag buffer size up to 1000PCS@96bits EPC;
Low power dissipation with single +3.6~5.5VDC power supply;
Support RSSI;
High stability with air cooling and no extra heat sinking;
Capable of continuous operation for 24 hours×365 days;
Support on-the-site firmware upgrading.
