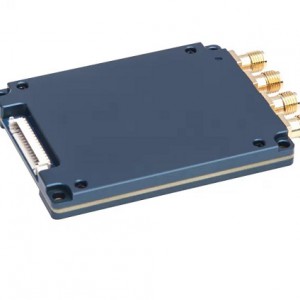

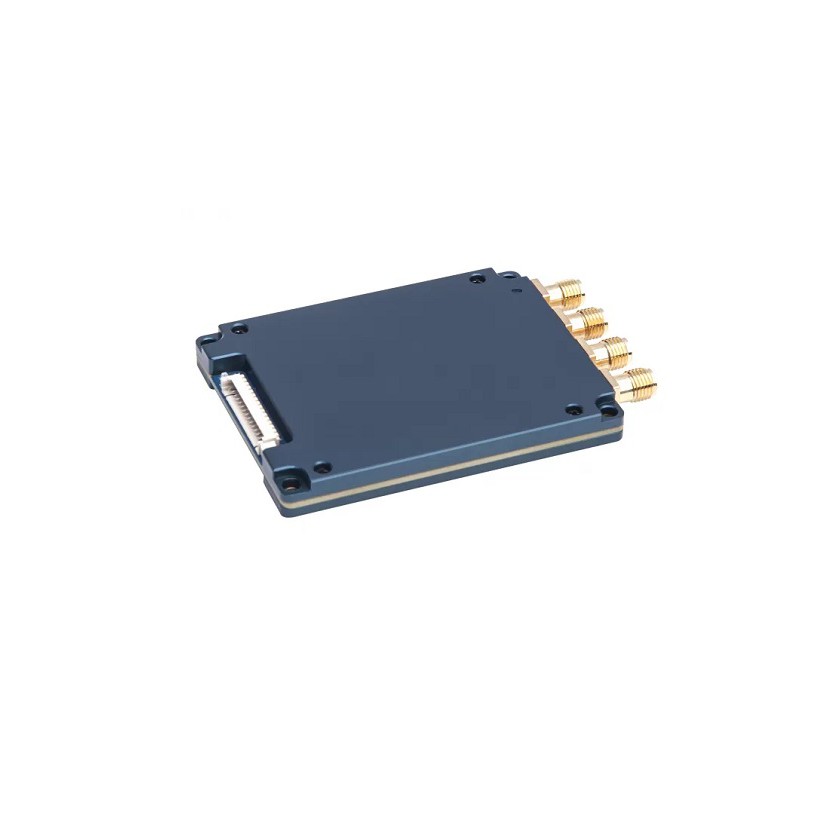

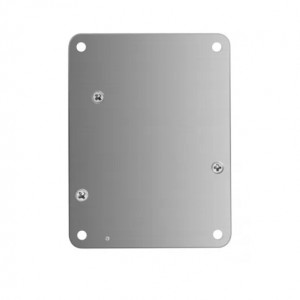

Based on the E710 chip design, Gen2 Extension Ready, maximizing chip potential with outstanding multi-tag anti-collision capability. The 4-port high-throughput coordination design and advanced thermal balance planning ensure consistently high performance over time. All these make it ideal for meeting the high-performance RFID system requirements in fields such as warehousing, logistics, apparel, production lines, and retail. Additionally, sub-versions based on the E510 and E310 are available.
Ex10 UHF RFID Module FEATURES
Self-intellectual property;
Designed with IMPINJ E710/E510/E310 and support ISO18000-6C(EPC C1G2) protocol tag, featuring excellent multi-tag anti-collision functionality;
865~868MHz/902~928MHz frequency band(frequency customization optional);
FHSS or Fix Frequency transmission;
RF output power up to 33dbm(adjustable);
SMA sockets for 4 external antennae ;
Effective distance up to 12m*(with external 8dbi antenna and tag E41);
Maximum inventory speed* up to 1000pcs/s (using E710) or 600pcs/s (using E510) or 350 pcs/s (using E310);
Support RSSI, Tag buffer size up to 1000PCS@96bits EPC;
Low power dissipation with +4.5~5.5VDC power supply;
Support RS232 serial communication interface (3.3V TTL level);
High stability with air cooling and no extra heat sinking;
Support on-the-site firmware upgrading.
