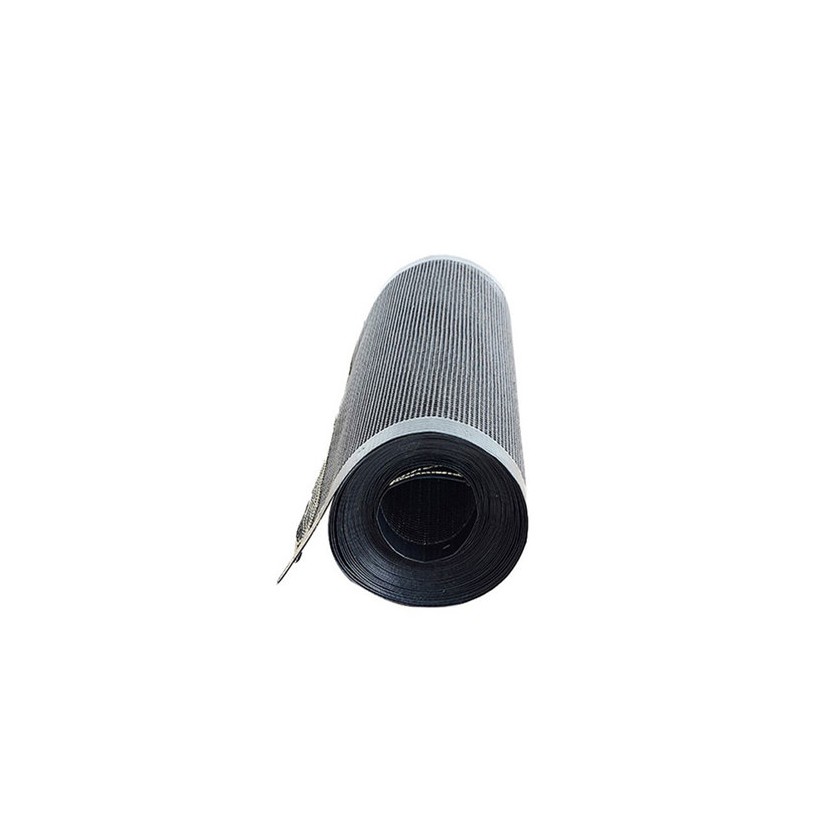

PTFE Mesh Belt are made from high quality open mesh woven fiberglass coated with ptfe resin. The open mesh area allows maximum air flow optimising drying times. Designed to operate in extremes of both temperature and chemical exposure, PTFE mesh belts have been a natural choice for dryer manufactures. It is ideally suited for conveying products and is commonly used in a wide variety of industries, such as gas, electric, infrared(IR), radio frequency(RF), microwave and ultraviolet(UV)conveyorized drying operations.
PTFE Belt Feature
1. Lightweight and energy efficiency for economical operation
2. Outstanding temperature resistance (-170oC + 260oC)
3. Low thermal mass
4. Controlled porosity
5. Superior non-stick surface, easy to clean
6. Exceptional strength and dimensional stability
7. Superior tracking
Model | Mesh Size | Material | Thickness | Weight | Max Width | Colour |
6001 | 1x1mm | fiberglass | 0.75mm | 560g/m² | 4000mm | Brown |
6001 AS | 1x1mm | fiberglass | 0.75mm | 560g/m² | 4000mm | Black |
6004 | 4x4mm | fiberglass | 1.0mm | 450g/m² | 4000mm | Brown |
6004 AS | 4x4mm | fiberglass | 1.0mm | 450g/m² | 4000mm | Black |
6004 Blue | 4x4mm | fiberglass | 1.0mm | 490g/m² | 4000mm | Blue |
6008 | 4x4mm | fiberglass | 1.0mm | 600g/m² | 4000mm | Brown |
6008Blue | 4x4mm | fiberglass | 1.0mm | 600g/m² | 4000mm | Blue |
6008AS | 4x4mm | fiberglass | 1.0mm | 600g/m² | 4000mm | Black |
6015 | 2x2.5mm | fiberglass | 0.70mm | 505g/m² | 4000mm | Brown |
6015 AS | 2x2.5mm | fiberglass | 0.70mm | 505g/m² | 4000mm | Black |
