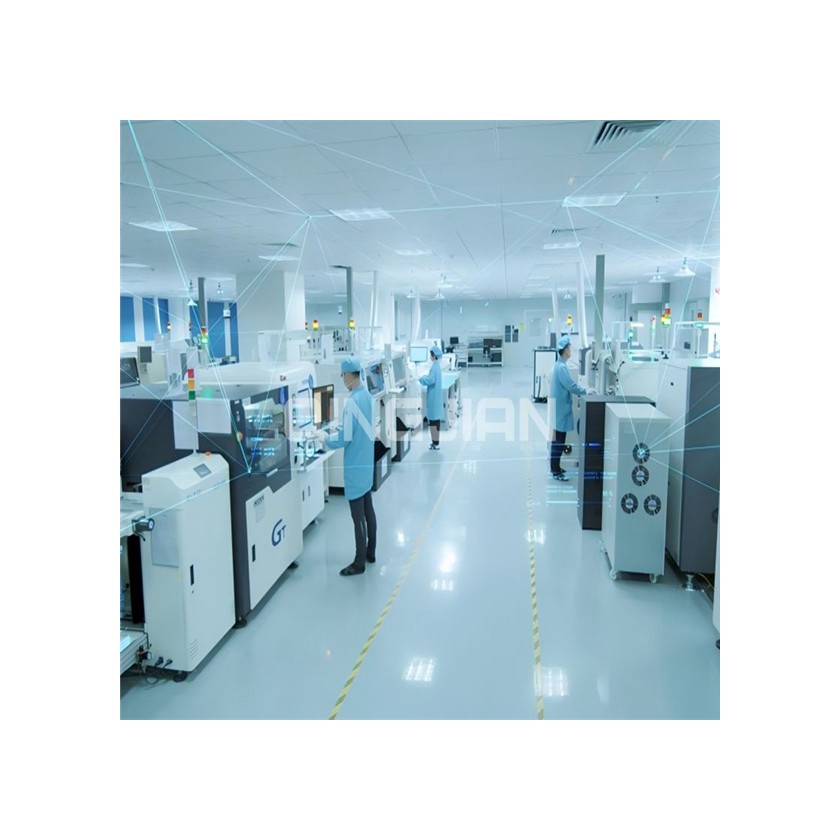

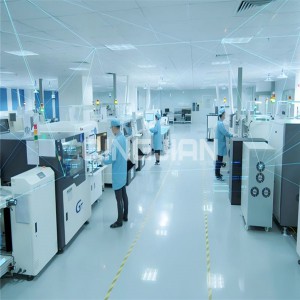

We have 5 SMT (Surface Mount Technology) production lines equipped with brand-new imported Samsung S1 and S2 high-speed placement machines, fully automatic solder paste printing machines, ERSA ten-temperature zone reflow ovens, AOI (Automated Optical Inspection), SPI (Surface Mount Inspection), X-RAY, and other high-end equipment. We are particularly skilled in producing high-precision and complex single boards, and have actual performance in producing ultra-complex single boards. We can mount SMD (Surface Mount Devices) components including 0201 and 01005, as well as ultra-high-precision QFP and BGA chips with a pin pitch of 0.3mm. For specific details, please refer to the "Professional PCBA" section mentioned above.
With years of manufacturing experience and cutting-edge facilities, we are your trusted partner for turnkey PCB assembly.
PCBA Production Capacity
Daily production capacity of SMT | 4 million points | |
SMT production line | 5 items | |
Material throwing rate | Specific resistance 0.3% | |
IC type without material throwing | ||
Single board type | POP/Regular Board/FPC/Rigid-Flex Board/Metal Substrate | |
Specification of mounted components | Minimum package size for attachment | 01005 Chip/0.4 Pitch BGA |
Minimum device precision | ±0.04mm | |
IC-type chip placement accuracy | ±0.03mm | |
For more details please contact Qingjian Electronics
