The first choice for batch processing of precision parts in die casting, communications, and 5G mobile phone industries
If you are looking to improve your productivity, our vertical CNC drilling and tapping machines are your best choice. With their excellent versatility and powerful processing power, these machines can handle a variety of drilling and tapping tasks, from simple to complex.
We offer a wide range of models to ensure that you can find the one that best meets your specific needs. Whether you are looking for extreme precision, high-speed operation or advanced functions, our professional team will help you choose the most suitable equipment.

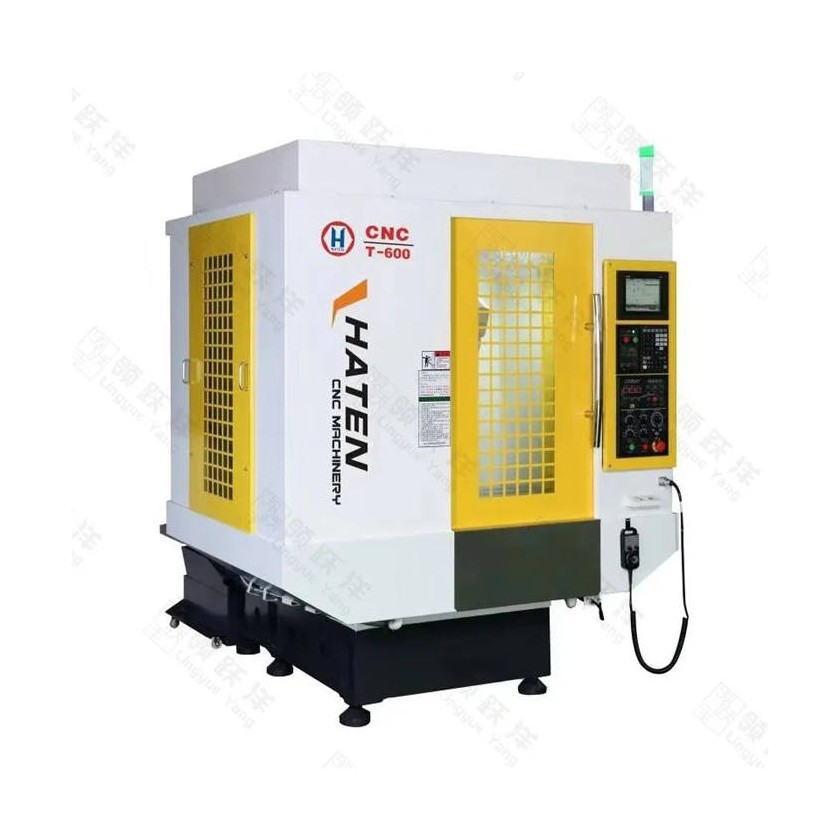

By using our 3 Axis Vertical Machining Center, you will enjoy the benefits of significantly improved productivity and work efficiency. Take advantage of the versatility and powerful performance of these advanced machines to meet various processing challenges while ensuring the accuracy and quality of the results. Our team is dedicated to providing excellent customer service and is ready to solve any problems or concerns you encounter at any time.
Specifications
Item | unit | T-600 |
Worktable area | mm | 700x420 |
Worktable maximum loading | KG | 250 |
T-Slot(slot*width*distance) | 3-14*115 | |
Spindle nose taper | BT30 | |
X/Y/Z axis travel | mm | 600/420/300 |
Distance between spindle end face and worktable end face | mm | 150-480 |
Specification of X, Y and Z Axis Gauge Screw | X：HGW30 Y：HGW30 Z：HGW30 | |
Spindle Speed (Direct Connection) | rpm | 20000/24000 |
Tool magazine capacity | T | 16/21 |
X/Y/Zaxis fast displacement | m/min | 48/48/48 |
Cutting feed speed | m/min | 1-8000 |
Repeated positioning accuracy | mm | 土0.003 / 300 |
Host weight | KG | 2800 |
