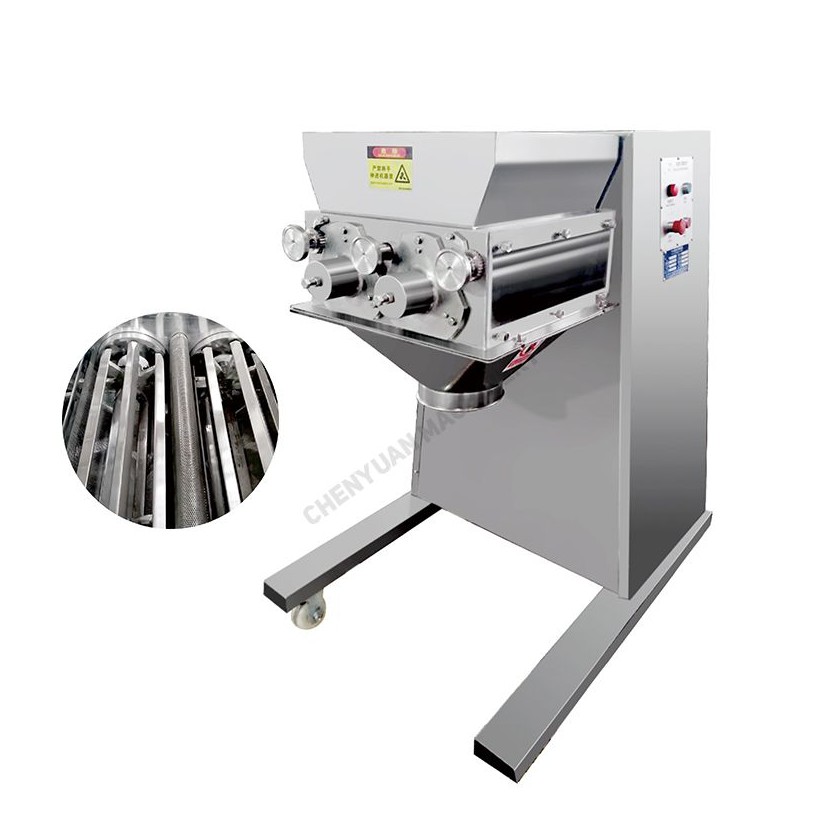

This SYK Double-Head Oscillating Granulator is developed and improved on the basis of the traditional rocking granulator. It can be widely used in the control, chemical, food and other industries. It can make wet powdery materials into granules, crush granulated dry materials and can quickly granulate. This machine is in line with "GMP" which is the ideal granulation equipment.
The two rollers are reciprocally oscillated by mechanical transmission, and the material is extruded from the screen into pellets or pulverized or granulated, and has the advantages of simple operation, high output, simple and compact structure, small footprint and the like.
Technical Parameter
Model | 100B | 160B | 250B |
Production capacity(kg/h) | 80-450 | 120-680 | 200-1200 |
Power(kw) | 2.2 | 5.5 | 11 |
Rotary drum rotation speed(rpm) | 55 | 55 | 55 |
Oscillating angle(°) | 360 | 360 | 360 |
Rotary drum diameter(mm) | 100×2 | φ160×2 | φ250×2 |
Overall dimensions (mm) | 900×650×1100 | 1200×800×1350 | 1300×950×1400 |
Weight(kg) | 380 | 650 | 1050 |
ChenYuan specialized in delivering cutting-edge solutions for wet granulation machines, dry granulation machines, and advanced direct compression processes. Our comprehensive granulation series ensures precise and efficient operations for industries worldwide.
