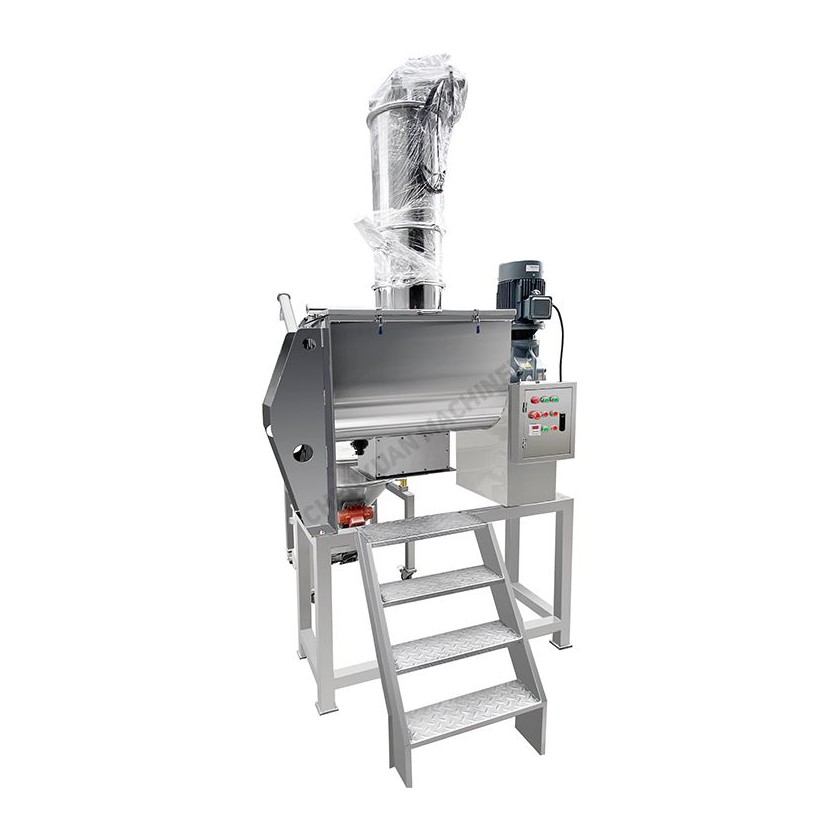

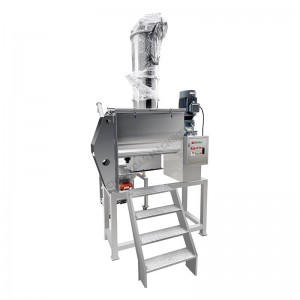

WLDH Horizontal Spiral Ribbon Mixer



单价 面议对比
询价 暂无
浏览 0
发货 AsiaChina付款后3天内
过期 长期有效
更新 2025-06-06 20:55

联系方式
加关注0

Jiangyin Chenyuan Machinery Manufacturing Co., Ltd

Personal第1年
资料通过认证
保证金未缴纳
  • Asia-China
  • 上次登录 05-30 10:14
  • chenyuanmachinery (Mr.)
详细说明

The Horizontal Spiral Ribbon Mixer consists of a U-shaped container, a ribbon agitating blade and a transmission component; the ribbon-shaped blade is generally made into a double or triple layer, and the outer spiral gathers the material from both sides to the center, and the inner spiral the material  transportes from the center to the sides to form a convective mixing. The ribbon mixer has good effects on the mixing of viscous or cohesive powders and granules and the mixing of liquid and paste materials in the powder. The cylinder cover can be made into a fully open door to facilitate cleaning and replacement of the equipment or product.

Technical Parameter

Model

Full volume(M³)

Loading coefficient

Motor power(kw)

Dimensions (L×W×H)

Equipment weight

WLDH-0.1

0.1

0.4-0.8

2.2

1190×740×770

330

WLDH-0.3

0.3

0.4-0.8

5.5

2030×630×980

720

WLDH-0.5

0.5

0.4-0.8

7.5

2320×730×1130

980

WLDH-1

1

0.4-0.8

11

2800×920×1320

1700

WLDH-1.5

1.5

0.4-0.8

15

3180×1020×1550

1800

WLDH-2

2

0.4-0.8

15

3310×1120×1640

2100

WLDH-3

3

0.4-0.8

18.5

3750×1290×1820

3000

WLDH-4

4

0.4-0.8

22

4200×1400×1990

3980

For more details please visit www.chenyuanmachinery.com


举报收藏 0评论 0
更多>本企业其它产品

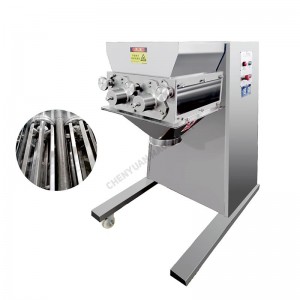

SYK Double-Head Oscillating Granulator
