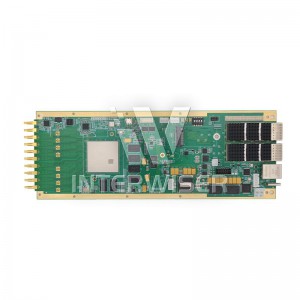

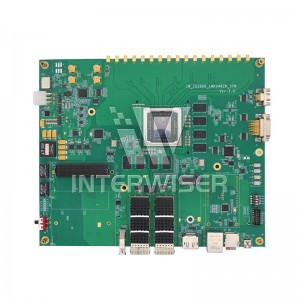

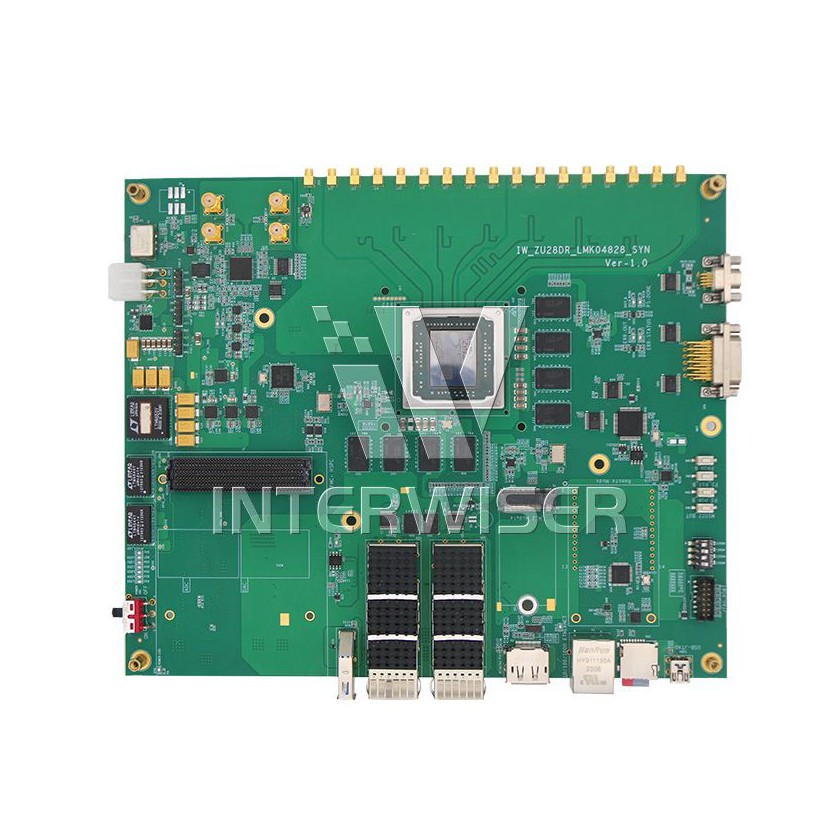

IW-RFSOC-48DR-SYN digital-analog mixed signal processing card, using Xilinx ZYNQ UltraScale + RFSoC ZU48DR, can access large FPGA gate density, 8 ADC/DAC ports, expandable I/O ports and DDR4 memory, suitable for a variety of programmable applications, IW-RFSOC-48DR-SYN with ZU48DR FPGA is supported by 8 14-bit, 4GSPS sampling rate ADC and 8 14-bit, 9.85 GSPS sampling rate DAC ports. ADC and DAC ports are supported by high-performance micro RF connectors. IW-RFSOC-48DR-SYN is equipped with a high-pin count FPGA mezzanine card (FMC+) compliant with the Vita 57.4 standard and a large number of daughter card options to support extended functionality. It can provide a comprehensive RF signal chain to meet the demands of machine learning or optical wireless applications, such as Massive-MIMO remote radio units, millimeter wave mobile backhaul, 5G baseband, fixed wireless access, early warning/radar, wired Remote-PHY nodes, test and measurement, satellite communications and other high-performance RF applications.
The onboard 100Gbps QSFP28 connector provides an optical port for efficient high-speed data processing in parallel with analog and digital conversion. The IW-RFSOC-48DR-SYN also features onboard DDR4, DP display interface, SATA storage interface, and USB3.0 support hard disk SATA3 (6G speed), Micro SD card (support UHS), 10/100/1000 Ethernet, and USB JTAG/UART , which enables JTAG loading mode to shares the UART output.
The IW-RFSOC-48DR-SYN from Interwiser Electronics is the first algorithm evaluation board featuring an RFSoC device, providing a COTS solution that delivers the benefits of RFSoC while enabling more efficient data offloading. With COTS advantages, users can achieve the fastest deployment, lower total cost of ownership, full lifecycle support, and simplified future technology insertion.
