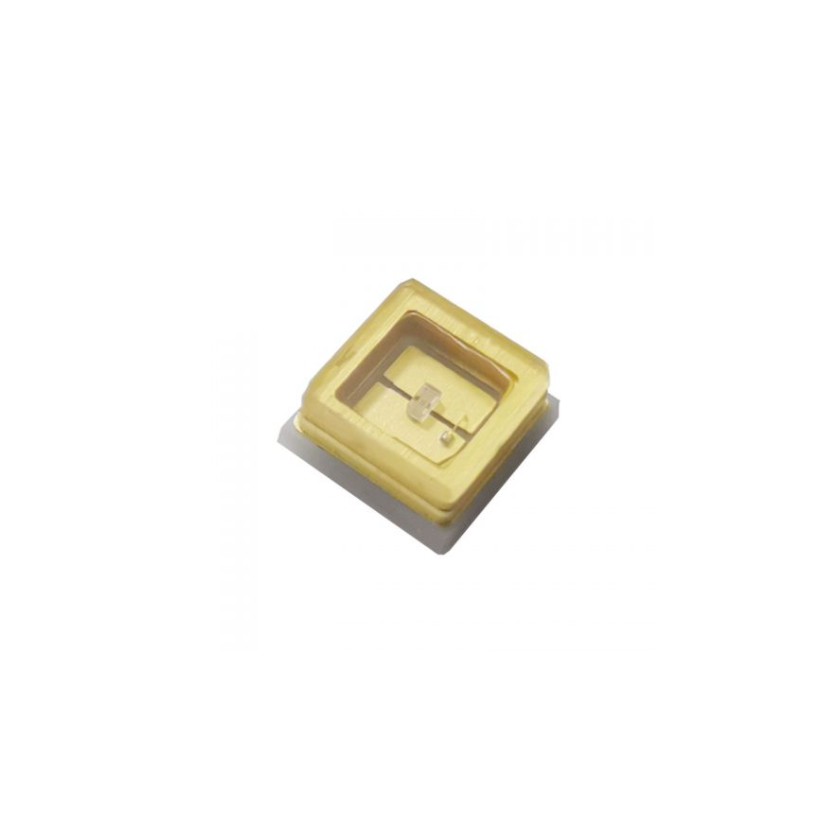

RoHS Compliance Japan Stanley 275nm Ultra Violet SMD LED

UVC chip 275nm, UVC LED



Due to the global outbreak of COVID-19, the people's demand for anti-epidemic and sterilization of anti-virus products has risen, ranging from portable sterilization equipment, home appliances sterilization, and public health sterilization. With the rise of environmental awareness and in response to the Minamata Convention, UV lamps containing mercury will gradually be replaced by LEDs. In the future, in the post-epidemic era, UVC LED products will continue to grow steadily in the sterilization, and purification and water treatment markets.

Moonleds provide complete UVC series products and customized services. We have developed and completed various power packages for 275 nm UVC, including 3535, 3939 & 6868 products, and the emission power after packaging is between 3~120 mW, and can be matched with different optical designs to achieve the best sterilization effect.

The third-party unit test report shows that the sterilization effect can be as high as 99.99% in the application of water sterilization and air sterilization.



Product Features



• UVC chip 275nm,  UVC LED

• Ceramic package with integrated quartz glass cover

• Original packaging from Japan Stanley Electric

• Environmentally friendly, UVC LEDs do not contain mercury

• Healthy light source, short-wave UVC light does not reach the surrounding area, do not pose risk to people

• Flexible and compact design, small footprint and DC operating

• No pre-heating necessary, instantly providing full optical output

• Robust and insensitive to external shocks

• Applied for UV-C Air Disinfection/UV-C Surface Disinfection/UV-C Water Disinfection

  Smoke/Dust/Particle Sensing

  Curing applications

  Treatment in the chemical industry



Deep UV 3535 UV-C LED Specification



Color

Wavelength
(nm)

VF
(V)

IF
(mA)

Optical Power
(mW)

Beam Angle(°)

Part Number

UVC

270-280

4.0-6.5

50

6-8mW

120

MN-S35UVCST275
