The 13t excavator adopts originally imported Cummins engine, featuring the largest horsepower 110PS among products of the same level. The hydraulic pump and valves all adopt products of first-class brand in the world, featuring stable and reliable performance, boom confluence, arm regeneration, slewing priority, and straight travel. It is internally installed with buffering safety valve, balance valve and parking brake valve, which features smooth brake and prevents from hydraulic shock. It also adopts double-speed travel motor which can be switched automatically/manually.

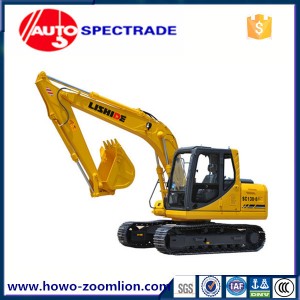

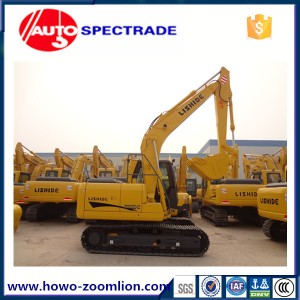

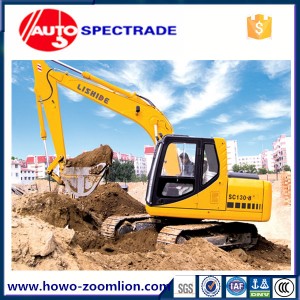

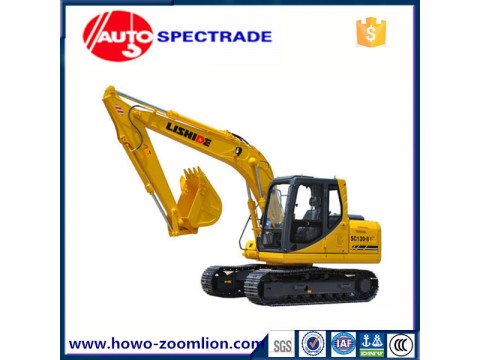

Model: SC130.8
Bucket capacity 0.53 m3
Operating Weight 13 T
Engine model: CUMMINS B3.9-C
Dimension (L×W×H): 7576×2490×2815
|
Model |
SC130.8 |
|
Weight (T) |
13 |
|
Bucket capacity (m3) |
0.53 |
|
Engine model |
CUMMINS B3.9-C |
|
Power (kw/r/min) |
86/2200 |
|
Travel speed (km/h) |
5.3/3.1 |
|
Slewing speed (r/min) |
12.5 |
|
Gradeability (%) |
70 |
|
Bucket digging force (KN) |
90 |
|
Ground pressure (KPa) |
38 |
|
Max. flow (L/min) |
128*2 |
|
Fuel tank capacity (L) |
247 |
|
Hydraulic tank volume (L) |
130 |
|
O- Max. digging height (mm) |
8630 |
|
P- Max. dumping height (mm) |
6180 |
|
Q- Max. digging depth (mm) |
5500 |
|
R- Max. vertical digging depth (mm) |
4940 |
|
V- Min. slewing radius (mm) |
2495 |
|
A- overall length (mm) |
7576 |
|
B- overall width (mm) |
2490 |
|
C- overall height (to boom top) (mm) |
2780 |
|
D- overall height (to cab top) (mm) |
2815 |
|
Boom length (mm) |
4600 |
|
Arm length (mm) |
2500 |
