- Industrial circulation system |

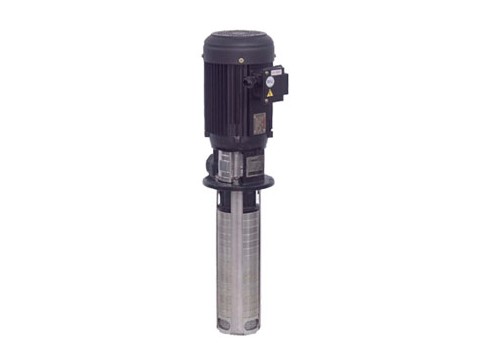

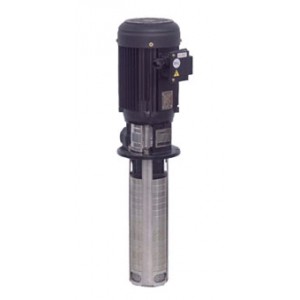

Pump Construction:
Immersible vertical multistage centrifugal pump,
self-priming, coupling connection between pump
and motor, stainless steel construction design
ensures corrosion-free operation.
Motor:
Nominal speed : 2860 or 3450 rpm
Frequency range : 50 or 60 Hz
Standard voltages : 3Ø 198-242 / 342-418V
Enclosure class : IP54
Insulation class : F.
Operation Conditions :
Ambient temperature : Max. +40¢XC
Liquid temperature range : +0¢XC~+90¢XC
Operating pressure : Max. 30 kg/cm²
Submerged depth : Min. 65mm
Model Code:
Dimension:
TPCK2T Series, 50Hz
| Model | Power (kW) |
Phase | Voltage | Ampere |
|---|---|---|---|---|
| TPCK2T13-13 |
1.5
|
3
|
198-242/342-418
|
6.2-5.1/3.6-2.9
|
| TPCK2T15-15 |
1.5
|
3
|
198-242/342-418
|
6.2-5.1/3.6-2.9
|
| TPCK2T18-18 |
2.2
|
3
|
198-242/342-418
|
8.9-7.3/5.1-4.2
|
| TPCK2T19-19 |
2.2
|
3
|
198-242/342-418
|
8.9-7.3/5.1-4.2
|
| TPCK2T22-22 |
2.2
|
3
|
198-242/342-418
|
8.9-7.3/5.1-4.2
|
| TPCK2T26-26 |
3.0
|
3
|
198-242/342-418
|
11.4-9.3/6.6-5.4
|
TPCK2T Series, 60Hz
| Model | Power (kW) |
Phase | Voltage | Ampere |
|---|---|---|---|---|
| TPCK2T13-13 |
3.0
|
3
|
198-242/342-418
|
11.4-9.3/6.6-5.4
|
| TPCK2T15-15 |
3.0
|
3
|
198-242/342-418
|
11.4-9.3/6.6-5.4
|
| TPCK2T18-18 |
4.0
|
3
|
198-242/342-418
|
16.6-13.6/9.6-7.9
|
| TPCK2T20-20 |
4.0
|
3
|
198-242/342-418
|
16.6-13.6/9.6-7.9
|
TPCK4T Series, 50Hz
| Model | Power (kW) |
Phase | Voltage | Ampere |
|---|---|---|---|---|
| TPCK4T8-8 |
1.5
|
3
|
198-242/342-418
|
6.2-5.1/3.6-2.9
|
| TPCK4T10-10 |
2.2
|
3
|
198-242/342-418
|
8.9-7.3/5.1-4.2
|
| TPCK4T12-12 |
2.2
|
3
|
198-242/342-418
|
8.9-7.3/5.1-4.2
|
| TPCK4T14-14 |
3.0
|
3
|
198-242/342-418
|
11.4-9.3/6.6-5.4
|
| TPCK4T16-16 |
3.0
|
3
|
198-242/342-418
|
11.4-9.3/6.6-5.4
|
| TPCK4T19-19 |
4.0
|
3
|
198-242/342-418
|
16.6-13.6/9.6-7.9
|
| TPCK4T22-22 |
4.0
|
3
|
198-242/342-418
|
16.6-13.6/9.6-7.9
|
TPCK4T Series, 60Hz
| Model | Power (kW) |
Phase | Voltage | Ampere |
|---|---|---|---|---|
| TPCK4T5-5 |
2.2
|
3
|
198-242/342-418
|
8.9-7.3/5.1-4.2
|
| TPCK4T6-6 |
2.2
|
3
|
198-242/342-418
|
8.9-7.3/5.1-4.2
|
| TPCK4T8-8 |
3.0
|
3
|
198-242/342-418
|
11.4-9.3/6.6-5.4
|
| TPCK4T10-10 |
4.0
|
3
|
198-242/342-418
|
16.6-13.6/9.6-7.9
|
| TPCK4T12-12 |
4.0
|
3
|
198-242/342-418
|
16.6-13.6/9.6-7.9
|
