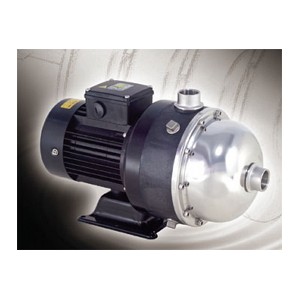

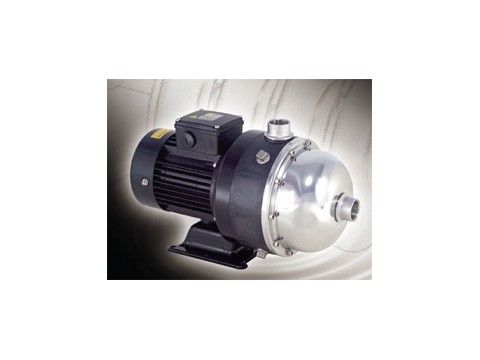

TPHP Series Multistage Centrifugal Pump



单价 面议对比
询价 暂无
浏览 51
发货 MalaysiaSelangorKlang付款后3天内
过期 长期有效
更新 2015-06-04 18:06

联系方式
加关注0

AMAX HARDWARE AND MACHINERY SDN BHD

VIP   Company第8年
资料未认证
保证金未缴纳
详细说明
 The TPHP pumps are primarily designed for industrial applications:Water supply and pressure boosting Air-conditioning Water treatment Heating and cooling in industrial processes Industrial washing and dish-washing machines Softened water Pressure boosting of process water Fertilizer/dosing systems.

Pump

Horizontal, multistage centrifugal pump of the non selfpriming type with extended pump/motor shaft and fitted with a mechanical shaft seal.Compact pump unit with small physical dimensions,axial suction port and radial discharge port.

Motor

  • Enclosure protection class:IP54
  • Insulation class: F.
  • Frequency range: 50 / 60Hz
  • Nominal speed: 2900 / 3500 rpm
  • Standard voltages: 3Ø200-240 / 380-440V, 50Hz ,3Ø200-255 / 380-480V, 60Hz.

Operation Conditions

  • Ambient temperature: Max. +40°C
  • Liquid temperature range: +0°C ~+90°C
  • Operating pressure: Max. 10kg/cm²
  • Inlet pressure: Max. 6kg/cm²

Dimension:
