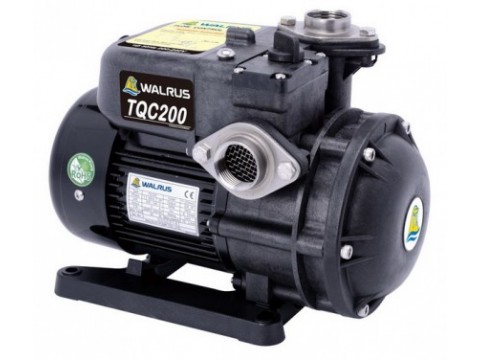

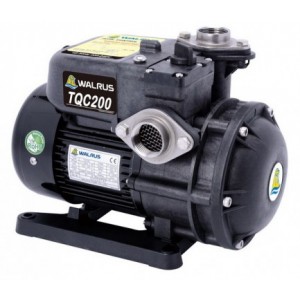

This TQC series most suitable to Install it below the water tower, to downward pressurization, When using the water; the pump will automatically start increase the pressure to supply water, when stop using the pump will automatically stop supply power and water。
Feature
1. Compact design and quiet operation make the TQC series suitable for many applications。
2. The TQC is constructed from the top quality corrosion resistant materials。
3. The motor has built-in thermal overload to protect against high operating temperatures and over current
Operating Condition
1. Ambient temperature: Max. +40°C
2. Liquid temperature: + 4°C ~ + 40°C
3. Pressure Range : Max. 6kg/cm²
4. Suction Pipes: Must run in positive pressure only a negative pressure unable to work the pump
5. Discharge Pipes: Must lower than water tower over 0.5-meter.
Specification 50Hz
| Model |
Power |
Voltage |
Amp's |
Inlet |
Outlet |
Maximum Pressure |
Maximum Capacity L/min |
|---|---|---|---|---|---|---|---|
| TQC200 |
0.18 | 200~240 | 1.5 | 1" | 1" | 2.2 | 45 |
| TQC400 |
0.37 | 200~240 | 3 | 1" | 1" | 3.0 | 75 |
| TQC800 |
0.75 | 200~240 | 4.4 | 1" | 1" | 3.5 | 95 |
Specification 60Hz
| Model |
Power |
Voltage |
Amp's |
Inlet |
Outlet |
Maximum Pressure |
Maximum Capacity L/min |
|---|---|---|---|---|---|---|---|
| TQC200 |
0.18 | 110/220 | 4.0/2.0 | 1" | 1" | 2.2 | 60 |
| TQC400 |
0.37 | 110/220 | 6.0/3.0 | 1" | 1" | 2.8 | 70 |
| TQC800 |
0.75 | 110/220 | 11/5.5 | 1" | 1" | 4.4 | 90 |
Dimension
|
50Hz |
60Hz
