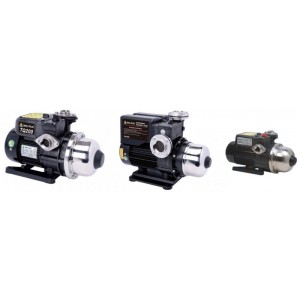

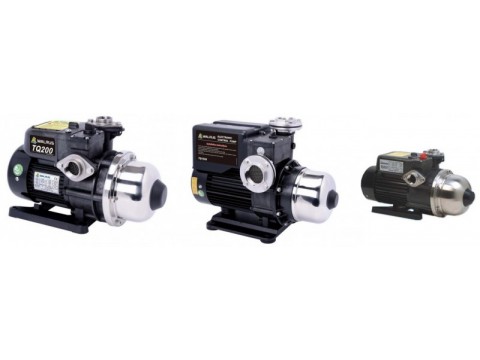

The TQ series pumps are designed for water supply and
pressure boosting in residential, commercial and light
industrial applications where low or inadequate water
pressure exists. It is suitable for boosting pressure from
underground or surface water supplies.
Suitable liquids
Potable water or other clean or non-corrosive liquids.
Operating conditions
1. Ambient temperature: Max. +104oF (40oC)
2. Liquid temperature: + 39oF(4oC) ~ +104oF (40oC)
3. System Pressure : Max. 120 PSI
4. Relative humidity: Max. 85% (RH)
5. Under normal operation, it is not necessary to adjust
the pressure unless the cut in pressure is higher than
preset activation point (refer to speci cation).
Product code
Features
1. The TQ is a complete, all-in-one unit, consisting of pump,
motor, pressure tank, and electronic controller. The
built-in electronic controller provides constant pressure
which ensures that the pump starts automatically when
water is consumed and operates continuously until
water is not required.
2. Compact design and quiet operation make the TQ series
suitable for many applications.
3. The TQ is constructed from the top quality corrosion
resistant materials.
4. Pump has built in dry-run shut o with automatic reset
function.
5. The motor has built-in thermal overload to protect
against high operating temperatures and over current.
(Single phase motor only)
6. The TQ has an anti-cycling feature which prevents the
pump from continuous starting and stopping when you
have a dripping tap or minor leak in the system.
7. The pumps will lift water up to 25 ft. with foot valve and
pump suction piping lled with water.
