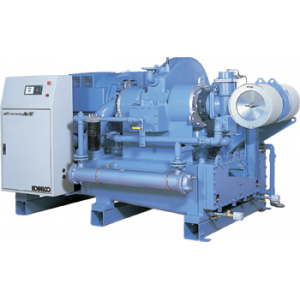

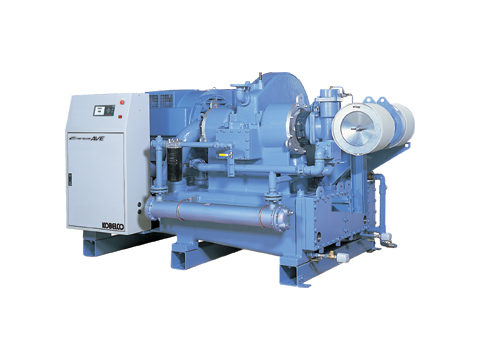

Kobelco Turbo Oil Free Compressor

High efficiency

Thanks to the most advanced aerodynamics technology by KOBELCO, new titanium impeller has been developed. lt achieves 5% better efficiency than conventional model and equivalent to the 3 stage machines by 2 stage.

ITCS mounted to increase the power and energy savings

The computer manages optimum load/un-load operation,and self-diagnostic system to avoid sudden failure. And also this cam manage the maintenance interval to increase the maintainability.

You can operate the machine with just pressing the Start/Stop button with its sophisticated user-friendly interface.

5% better efficiency than conventional model,thanks to precise machined Impellers and low pressure loss coolers.

High reliability

Simple 2-stage construction allows fewer parts (less 1 cooler and 1 pinion from 3-stage machine). Since there is no auxiliary motor except Main motor, less possibility of stop from motor trouble. In addition,rigid one-piece cast iron cooler with gear box decrease its vibration.

Easy maintenance

■ Superior capacity control valve
No instrument air is required.

■ Automatic drain valve
Highly reliable electric type drain valve is equipped as a standard.

■ Built in type air coolers
Simple one-pass type plate fin coolers are equipped. Water flows in tube side for easy cleaning.

Substantial options

■ Totally enclosed noise cover (Noise level about 75 dBA)
Low noise specification without cover (about 85 dBA) can also be available

■ ED series energy-saving dryer
Rotating absorbent dehumidifier that utilizes exhaust heat
●Energy saving-type that requires no electric heat, steam or purged air to regenerate the absorbent.
●Complete unit-type that saves space.

■ Stainless steel cooler
●SUS304 tube and SUS tube sheet.
●Cupronickel or other materials also available (option)

■ Exhaust cleaner for oil mist
High performance oil mist cleaner promise pure clean oil free air.
Recovered oil will be returned to gear box without any pollusion.

■ Electric power limiter

In case that there is no need for flow increase in winter season (character of turbo compressor), energy consumption and start-up current can be saved with continued suction valve control.
