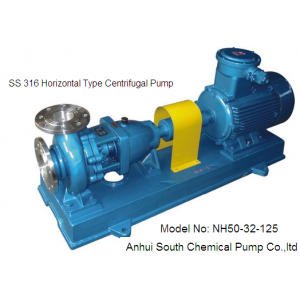

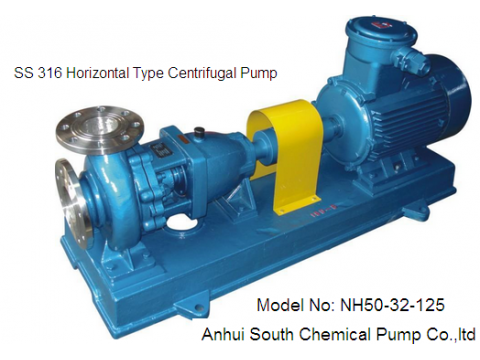

IH Series Centrifugal Pump is single stage ,single suction suspension centrifugal pump . the marks ,rated performance spot and dimension are made of international standard ISO2858-1975 (E)
It is designatured updated products by replaced F Series corrosion resistance centrifugal pump confirmed by China National Mechanical Industrial Department . it can meet requirement on convey corrosive viscosity liquid simlar with water in chemical flow processing.
The convey medium of temparature range from -20 to 120 degree.it is can convey medium temperature up to 200 degree when take available cooling step.
Products Feature :
1.High efficiency Energy saving : Compared with FSB Model , The Efficiency of IH Series Chemical Centrifugal Pump is greater than 3 - 5 % it is an good energy products .
2. shaft or bear seal : seal is filled materials r seal mechnical , two kinds of seal cover can interchangeably.3.suspension componentes : Suspension components using universal design, high level of generalization, high reliability.
4. material : the main flow components selected stainless steel, which can meet the delivery of different medium, long service life.
5.Fully Seal Shaft : it is used seal and the "O" type sealing ring assembled on Shaft, to ensure that the shaft is not in contact with the medium, impove the working life. The general design, high level of generalization..
6. Usage :IH Series Chemical Pump is selected interntional standard ISO2858-75 (E) made of ,it is approved the product which replac F pump hydraulic updated products by National Machinery Industry Ministry of the State Council , The hydraulic model and GB standards , advanced and reasonable, equipped with the power of energy -saving .it is than the original F type pump skills of nearly 25% strong interchangeability, convenient repair, fast operation. Widely used in chemical, petroleum, pharmaceutical, electronics, food, environmental protection, electric power, smelting, nonferrous metal, chemical synthesis and other fields. it is choose different mechanical seal or packing seal According to the working conditions .it is energy-saving products internationally recognized and recommended by the state, the seal size confirms to the ISO3069 standard.
7 working performance :Flow range:1.5~400m 3 /hHead range :3.5~125m Rotating Speed n:1450r/min,2900r/min Medium temperature :-20 ~105 degree
