Workstation Function

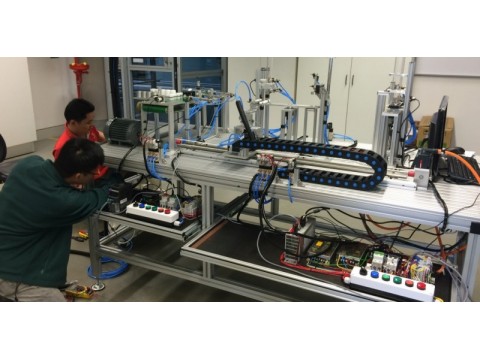

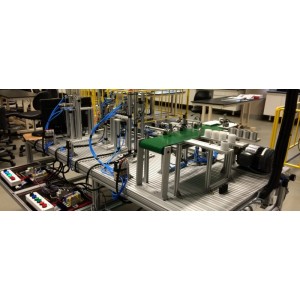

Our Flexible Manufacturing System (FMS) training kit system is an automatic production line trainer. It is installed on an aluminum alloy rail, compose of delivery unit, loading unit, assembly unit, processing unit and sorting unit. Our Flexible Manufacturing System Training kit is developed with practical, expandable, modular and flexibility in mind.
- Loading Unit: Product holder that needs to be process will feed into the loading unit.
- Delivery Unit: Delivery Unit consist of a encoded servo motor that is responsible of moving the product from one process unit to another process unit.
- Processing Unit: Product will be dropped onto product holder to be embedded into a white or metal product holder.
- Assembly Unit: Product will be pressed into product holder for sorting.
- Sorting Unit: Sorting unit will sort the end product based on color of the product holder and the color of the product itself.
Workstation Purpose
The FMS systems is designed to allow students to experiments and tinker with a simulated production based system. Each of the unit have their own independent control panel that allows students to separate the unit from one another.
The workstation covers topics such as relays, pneumatic cylinders, and different types of sensors, servo motor, ac motor, PC-Based PLC controllers and many other more.
Major Components
Component | Unit |
Loading Unit | 1 |
Delivery unit | 1 |
Processing Unit | 1 |
Assembly Unit | 1 |
Sorting Unit | 1 |
Servo Motor with Encoder Feedback | 1 |
Servo Motor Driver | 1 |
AC Motor | 1 |
AC Motor Driver | 1 |
Touch Screen Panel | 1 |
Industrial PC | 1 |
Automation Software – PLC Control | 1 |
Control Panel with Digital IOs | 5 |
Aluminium Table Top | 1 |
Training Manual | 1 |
Dimension :
3m x 3m x 2m (Width x Length x Height)
Pre-requisite knowledge:
PLC Programming, TwinCAT, Sensors, Pneumatic Cylinders, Motor Drivers
Our Commitment:
Iconix Technology provides on-site support, training and manual for all of our product. We uses Beckhoff PC-Based Technology that ensure ease of future expansion. Our knowledge and experience with both the academic and industry allow us to provide relevant and practical training solutions that are cost-effective and top-notch quality
Estimate Lead Times :
90 Days
Contact:
Email: info@iconixtechnology.com
Number: Ren – 0162782787
