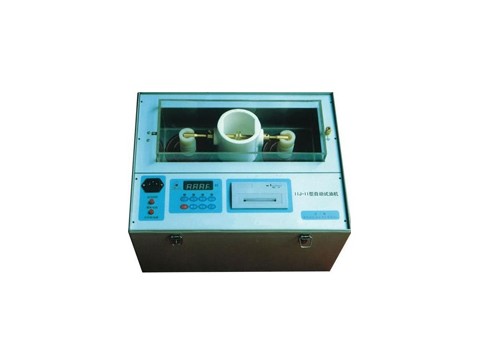

HBVT Automatic insulating Oil Tester, in accordance with IEC156, realizes the full automatic determination of insulating oil dielectric strength, make the original tedious and dangerous work become safe and easy. The instrument adopts special software and hardware anti-interference measures to eliminate the competing products prone to crash phenomenon. The new design will reduce the volume to the 1 / 2 of original, easy to carry and operate on-site.
Product Feature:
(1) High degree of automation: auto mixing, autostanding, auto step-up, automatically record the breakdown voltage, automatic cut power and go back to zero, automatically calculate the average, auto-print.
(2) Multi-layer anti-interference design of hardware and software, effectively eliminating the phenomena of system halted, run error and so on caused by strong electromagnetic interference in the operation.
(3) Integrated design, easy to carry.
(4) Breakdown Protection: it can cut off the high voltage of the oil cup within 10ms after the breakdown of the oil sample.
(5) Multi- protection, operational safety.
oil testing equipment | oil dielectric strength tester | closed cup flash point tester | transformer oil dielectric loss tester | insulation resistance tester
Technical Parameters:
| Power Supply | Voltage：AC220V±10% Frequency：50Hz±1Hz |
| Service condition | Ambient temperature：-10℃～40℃ Relative humidity≤90%RH |
| Dimensions | Length310mm*Width330mm*Height324mm |
| Weight | 22kg |
| Measurement Accuracy | ±（2%×readings+1kV） |
| Step-up rate | 2.5kV/s±10% |
| Output voltage | AC 0～100kV |
| Preset times | 1～9Times |
| Stirring time:0～99 s | |
| Silent pause 0～10 Minutes 39 s. |
