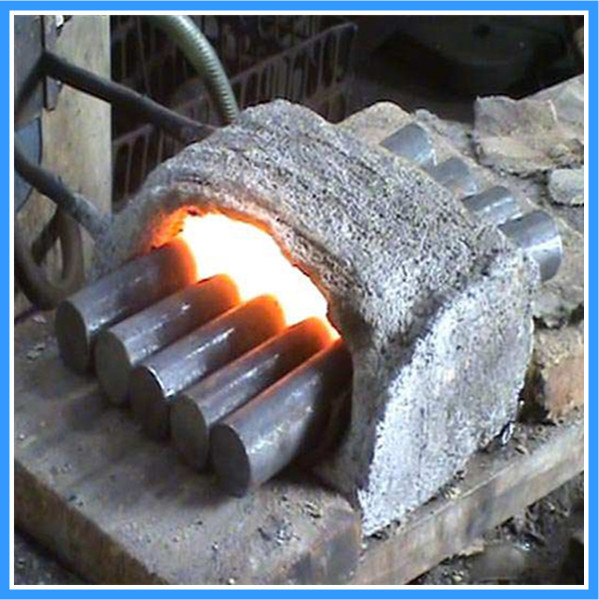

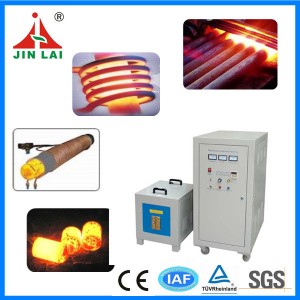

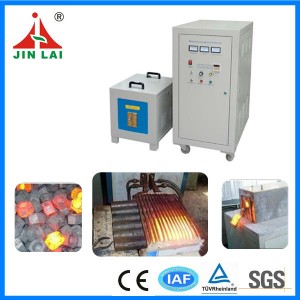

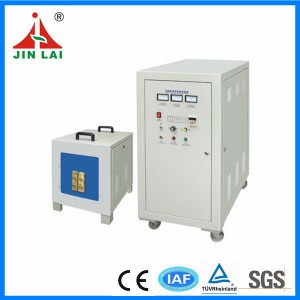

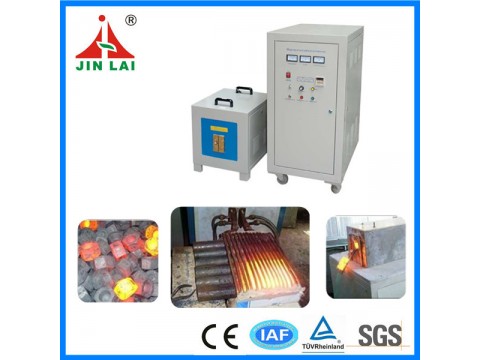

Induction Bar Hot Forging Machine
Main Feature:
l It adopts the IGBT inverter circuit in parallel connection, which has high load adaptability.
l The comprehensive full load design is available for 24-hour continuous operation.
l The digital phase locked realizes following frequency automatically.
l Design in modules. It is installed facility and use conveniently without debugging..
l The perfect protection function, insuring the reliability and easily maintaining of the equipments.
l The technique of converting frequency by resonance promotes efficiency of whole equipment by over 95%.
l Economy and environment protection, it can replac of gas/coal/electronic tube induction heating machine.
Technical Parameters：
|
Model |
JLC-60KW |
|
|
Input power desire |
3 phase 380V 50/60HZ |
|
|
Oscillate power max |
60KW |
|
|
Max input current |
90A |
|
|
DC current |
120A |
|
|
Oscillate frequency |
10-30KHZ |
|
|
Timing |
1M-99.99M 1S-99.99S 0.01S-99.99S |
|
|
Cooling water desire |
0.3Mpa |
|
|
Duty cycle |
100% 40°C |
|
|
Dimensions(L*W*H) |
Generator |
510*540*980mm |
|
transformer |
560*430*540mm |
|
|
Net weight |
80kg/55kg |
|
|
Cable length |
2-6(Meters) |
|
Spare parts for JLC-60KW Machine
|
Item |
Name of machine or parts |
Specification |
Amount |
|
1 |
JLC-60KW Generator |
- |
1 pc |
|
2 |
JLC-60KW Transformer |
- |
1 pc |
|
2 |
Foot switch |
3 core |
1 pc |
|
3 |
Induction Coils |
- |
2 sets |
|
4 |
Coil connect pole |
- |
2 sets |
|
5 |
Instruction Manual |
- |
1 |
|
6 |
Packing list and receipt |
- |
1 |
|
7 |
Guarantee card |
- |
1 |
|
8 |
Products certificate |
- |
1 |
