pvc layflat water/mud/slurry pump hose



单价 RM0.50 / meter对比
销量 暂无
浏览 96
发货 AsiaChina付款后3天内
库存 3000000000meter起订5000meter
品牌 huafeng
size 0.8''-12''
length 100m/roll
过期 长期有效
更新 2015-05-09 01:23

联系方式
加关注0

Linhai Huafeng Plastic Product Factory

VIP   Company第8年
资料未认证
保证金未缴纳
  • Asia-China
  • 上次登录 2015-04-09
  • Toni Wang (女士)   manager
详细说明

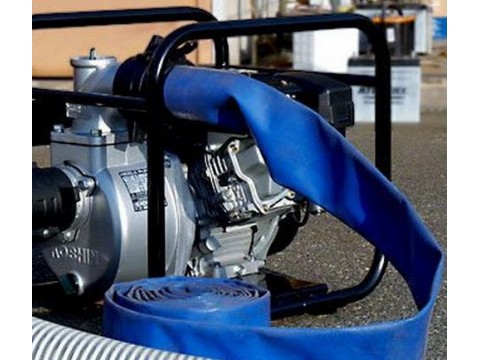

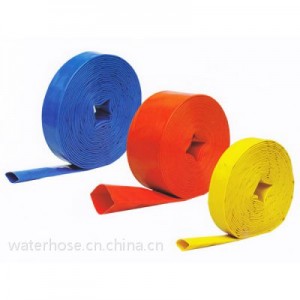

Product Name: PVC layflat hose, water discharge hose, backwash hose, irrigation water hose, water pump hose.

Material:

Inner layer: Top PVC material

Reinforcement: high strength terylene yarn

Outer layer: Top PVC material

Thickness: 1mm-2.5mm or as custom

Working temperature:-10℃~65℃ (14℉ + 150℉)

Product Specification:



SIZE

Inner Diameter

0.2Mpa

0.3Mpa

0.4Mpa

0.6Mpa

0.8Mpa

(inch)

(Nominal diameter)

kgs/m

kgs/m

kgs/m

kgs/m

kgs/m

0.8

20±1 mm

0.12

0.13

0.16

0.18

0.20

1

25±1 mm

0.135

0.15

0.17

0.19

0.21

1-1/4

32+1 mm

0.16

0.19

0.20

0.205

0.22

1.5

38.1±1.5 mm

0.175

0.22

0.225

0.30

0.32

2

50.3±2.0 mm

0.23

0.32

0.325

0.375

0.45

2.5

63.5±2.3 mm

0.30

0.40

0.45

0.50

0.55

3

76.2±2.3 mm

0.37

0.50

0.55

0.65

0.70

4

101.6±2.5 mm

0.50

0.65

0.75

0.85

0.90

5

127±2.8 mm

0.75

0.85

1.00

1.10

1.20

6

152.4±3.0 mm

0.90

1.20

1.25

1.50



8

203.2±3.5 mm

1.50

1.60

1.70

1.80




Size: 0.8 / 1 / 1.25 / 1.5 / 2 / 2.5 / 3 / 4 / 5 / 6 / 8 inch
Nominal diameter: 20/25/32/38/50/63/76/101/127/152/203 mm
Working Pressure: 2bar/3bar/4bar/6bar/8bar
Weight: 0.12kgs-1.8kgs / per meter



Accessories:

Hose clamp: 0.8inch-8inch

Hose coupling/hose fitting: 0.8inch-8inch



Linhai Huafeng plastic products factory

Add: Dingjiayang, Chengdong, Linhai Economic Development Zone

Mob: 0086-13736527630 Fax: 0086-576-85121558

Skype: toniwang1998

Mainly product: PVC layflat hose, fire hose, garden hose, agricultural use discharge and suction hose
