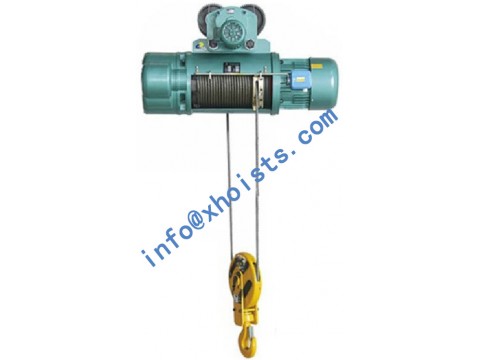

Electric Wire Rope Hoist

Capacity        0.5Ton-20Ton

Standard Lift    6 m

Use            Lifting Up/Down, Traversing Left/Rights

Drive Mode     Motor

Sling Type      Wire Rope

Operation     With pedant cable push button or remote control

Power Supply   220v-700v, 50/60 Hz, 3 phase, single or dual voltage

Control Voltage  24v, 36v, 42v, 48v, 110v

H.S. Code       84251100

Electric Wire Rope Hoist can be mounted on the straight or curve I beam and H beam of Single girder overhead cranes. Or be used together with Electric hoist Double-beam, Gantry crane, Slewing cranes, Jib cranes, EOT cranes, Portal cranes, Crane kits.

Trolley electric hoist can be installed with most cranes or hang on the steel girder, hoisting cargo in straight line or curve line; fixed electric hoist can be installed on fixed support and lift cargo with vertically or with different angles, can be widely used to lift heavy objects and is a popular light lifting equipment.

Detailed Description

1. Lifting motor

Brand: China top brand motor from Nanjing, It is of the best quality motors, it has bigger torque, so it can be adapted to moving frequently, the Maximum torque is 2.4-3 times than the rated torque.

Lifting motor uses tapered rotor motor with strong staring torque to adapt frequent direct staring in the intermittent work.CD1 type hoist uses single speed motor and MD1 type hoist uses dual speed motor. The ratio of motor's constant speed and slow speed is 10:1

2. Speed reducer

The electric wire rope hoist use helical gear three stage reducer. Gear and shaft are made by alloy steel and high carbon steel and through proper heat treatment to ensure its reliability and service life. the reducer is independent, so its easy to load and unload it.

Box body and cover is made of cast iron to ensure hoist's good damping performance and reliable sealing.
