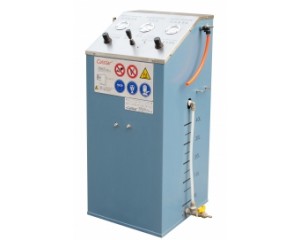

V30 Vacuum Pump
Vacuum decompression recovery device, special auxiliary device, made for organic solvent recovery, removeble and safe structure, pneumatic operation, is manufactured according to Chinese explosion-proof standards (CNEX) and European standards (ATEX).
It is suitable for assembling with Calstar organic solvent recycling machine 10L/20L/25L/30L solvent recycling machine to use.
Characteristic
●Explosion-proof electric equipment: in compliance with Chinese safety standards (CNEX) and European standards (ATEX), worry-free and safe for use;
●High quality durable stainless steel tank, prevent chemical corrosion;
●Operation is simple, convenient, easy and simple; no power supply, pneumatic operation, automatic feeding, safty for use;
●Vacuum decompression recovery: condensation, vacuum, storage features and variety of functions in one machine; heating temperature is low, saving heating electricity; sealed recycling, reduces evaporation, prevents leakage; right volatility and easy to decompose, toxic or high boiling point solvent recovery with excellent effect;
●The equipment is compact, small and light, space saving; removable device, easy operation and installation.
Specifications
(For reference, the data subject to change, please with your choice models the actual date)
Capacity |
Vaccum Pump |
Diaphragm Pump |
Dimension |
Weight |
30/40L |
68L/min |
0~61L/min |
630420960 |
39kg |
30 真空減壓回收裝置
真空減壓回收裝置V30
罐體回收容量(儲存容量) 30(40) L
壓縮空氣消耗 68 L/min
(75%真空) 清除1L空氣時間 2.5 sec
壓縮空氣消耗(4.0 MPa) 68 L/min
長x寬x高 630420960 mm
重 量 39kg
