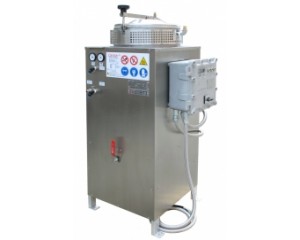

B60Ex Solvent Recycling Machine
B60Ex, special equipment made for organic solvent recovery, stationary structure and circular water-cooled system, safe structure, is manufactured according to Chinese explosion-proof standards (CNEX) and European standards (ATEX). By distillation and cooling, clean organic solvents are recycled for use.
It is suitable for a medium amount of organic solvent to recycle.
After waiting few hours, waste solvent has been reclaimed and you will get clean solvent to use!
Customer Benefits
●High quality solvent recovery: clear, pure, good performance;
●Low maintenance cost, easy to maintain;
●Easy operation and installation: recovery process and operation is simple, convenient. General staff can secure posts after short-term training;
●The equipment is compact, small and light, space saving;
●Short process time and short operation time;
●Less investment, pay back quickly on investment; well-preserved environment and high economic benefits with less investment.
Characteristic
●Explosion-proof electric equipment: in compliance with Chinese safety standards (CNEX) and European standards (ATEX), worry-free and safe for use;
●Self-developed standardized production, stable and durable quality assured, has good performance;
●Stationary structure, safe structure; slag discharge valve in the recovery tank bottom, only pull the slag discharge valve handle to clean residues;
●High quality durable stainless steel tank, prevent chemical corrosion; two-tier structure, indirect heating, reinforcement barrelhead design, precise temperature control, explosion-proof, anti-leakage;
●Heating Method: heat medium (heat transfer oils) indirect heating;
●water-cooled condensing system: cooling is faster, recovery is rapid; cooling faster than air-cooled models, more rapid recovery with a shorter time;
●Fully stainless steel enclosure: greasy dirt can be gently wiped clean, dirty easy to clean, so that equipment is always kept clean and new;
●Digital heating temperature controller: advanced numerical performance, safety intuitive, accurate and convenient heating temperature control;
●Multiple operational safety protection functions: pre-set temperature shutdown function; timer shut off function; ultra-high temperature protection features; high-voltage protection function; power failure protection function.
Customizing & Auxiliary device:
※You are free to customize the equipment to meet your specific needs, or choose auxiliary device in compliance with your needs in order to achieve the desired treatment effect.
Technical Parameters:
(for reference, the data subject to change, please with your choice models the actual date).
|
Model |
Feeding |
Heating |
Socket |
Time |
Dimension |
Weight |
|
B60Ex |
60L |
50~190°C |
220ACV/50Hz |
3Hr |
587*827*1480mm |
104Kg |
NOTE: Values listed above, the recovery time is under ideal conditions in laboratory test values during recovery of toluene for reference. The actual operation in the process of recovery and the waste solution inside the impurity content, high and low boiling point solvents, environmental temperature, viscosity, etc. differ.
Application Fields:
Calstar solvent recycling machines are applicable to reclaim most of common organic solvents. As long as you have a solvent recovery and treatment needs, recyclable processing industries in common organic solvents, no matter what kind of industry.
The equipments have been widely used in various industries at home and abroad.
1.Automobile manufacturing and repair industry:
vehicle spraying equipment and spray gun cleaning pipeline thin materials, such as: naphtha, toluene, xylene, methyl ethyl ketone, n-butyl, etc.; clean gasoline engine produced by such processes as solvents.
2.Electronic product manufacturing industry (e.g.: LCD, LED, etc.):
cleaning mold, cleaning of electronic products themselves cleaning agents, such as: ethanol, acetone, trichloroethylene, etc.
3.Precision instruments and hardware manufacturing industry:
cleaning mold and processed products, organic solvents, such as: naphtha, hydrocarbons, kerosene, gasoline and other solvents.
4.Sports Equipment Manufacturing:
manufacturing golf head, melting wax casting rods and other cleaning agents, spraying and cleaning clubs, fishing rod, etc. Solvent.
5.Shoes industry:
cleaning spray equipment, a variety of organic solvents, such as: shoe outsole, heel spraying, printing processing, cleaning shoe surfaces.
6.Plastic products:
cleaning mold and processed products, organic solvents, such as: cleaning solvents used in printing.
7.Printing industry:
machine wash plates with the cleaning agent, such as: plate washer solution, washing solution.
8.Paint Manufacturing Chemical industry:
cleaning of production equipment, containers and filling equipment, such as a variety of organic solvents and paint transfer agents, such as: naphtha, xylene, methyl ethyl ketone, butyl and so on.
9.FRP products industry:
surface anti-corrosion coating with beautiful production process used solvents, such as: yacht production, wind turbine blade production.
10.Colour decoration and gold & silver ornament:
surface pretreatment cleaning and plating pre-treatment used in solvents.
11.Optical products:
components of the production process for cleaning, coating pre-treatment and other solvents used in the industry.
12. Furniture Manufacturing:
Cleaning paint spraying equipment and transfer of organic solvents, such as: naphtha, xylene, methyl ethyl ketone, acetone and so on.
13.Other industries that use organic solvents as cleaning agents.
Suitable for these type of solution:
Calstar solvent recovery equipment used to recover from a liquid solution of organic solvents, not suitable for gas and solid-state materials for recycling.
Organic solvents used for cleaning of wastes resulting from cleaning solution in the recovery of organic solvents, such as: spray gun cleaning industry generated solvents Cleaning solution for electronic products trichloro-ethylene cleaning lens IPA, anhydrous ethanol; the printing industry, naphtha and cleaning solvents etc.
Calstar machines are suitable for handling and recovery of solvent categorized as follows:
1. Aromatics categories: toluene, xylene, mesitylene, etc.;
2. Aliphatic hydrocarbons: pentane, hexane, octane, etc.;
3. Alicyclic hydrocarbons : cyclohexane, cyclohexanone, toluene and cyclohexanone, etc.;
4. Halogenated hydrocarbons: chlorobenzene, dichlorobenzene, methylene chloride, trichlorethylene, etc.;
5. Alcohols: methanol, ethanol, isopropyl alcohol, etc. ;
6. Ether: ether, propylene oxide, etc.;
7. Esters: methyl acetate, ethyl acetate, butyl acetate, etc.;
8. Ketone: acetone, methyl ethyl ketone, methyl isobutyl ketone, etc.;
9. As well as other organic solvents that are not listed.
Not suitable for solvent recovery solution types:
1. Nitrocellulose (nitro), and oxidant solvents and other hazardous materials;
2. Strong acid or strong alkaline solvents;
3. Highly toxic solvents;
4. Pairs of stainless steel or brass with a strong corrosive solvent.
加料容量 60L 回收桶容量 80L
回收時間 約3Hr 回收率 約95%
加熱溫度50～190℃ 冷卻水溫度＜25℃
電源電壓220ACV/50HZ
冷凝器工作溫度 ﹣160～﹢200℃
運行環境的適宜溫度 5～30℃
B60Ex尺寸 長587X寬827X高1480 mm
重 量 約104kg
