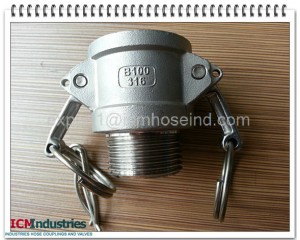

Stainless steel cam lock couplings Type B

 1.       key words: stainless steel camlock couplings, quick couplings, cam lock couplings, camlock fittings

2. Stainless steel camlock fittings also used with salt water, water waste and many chemicals & can also be used with hydraulic oil and coolants.

3. Features:Excellent corrosive resistance;high temperature ability;Long life expectancy;

Wide working temperature.

Working pressure: no more than 250 psi;

Temperature range: -150°F to +500°F (-101°C to +260°C);

4. Material: stainless steel 316, stainless steel 304

Sizes: 1/2" to 8"

Spce: A B C D E F DC DP FC FA

Thread: NPT, BSPP, BSPT

Camlock coupling: Gravity casting/Die casting

Pins, Rings and Safety clip material: Carbon steel plated or stainless steel

Handle material: Brass or stainless steel

Seal: NBR, BUNA, EPDM, VITON

Standard: A-A-59326 (previously called MIL-C-27487) or DIN 2828.

We aslo sell hose couplings ( Camlock, Sotrz, Bauer Guillenmin couplings ), stainless pipe fittings, valves, flanges, sanitary fittings and valves and so on.
