aluminum coil coating line

Unit Price	RM200000.00 / setCompare
Sales	None
Views	86
Delivery	AsiaChinaPre-sale, Within 90 days after payment
Stock	1setMin order 1set
Brand	Geartech
Expiry	Long-term valid
Update	2014-09-23 10:52

Contact Info

Follow0

Zhejiang Geartech Machinery Co.,Ltd

CompanyYear 9

InformationNot Verified

DepositNot Paid

Asia-China
Last Login 2014-09-04 •
Paulwan (Mr.)

Enter Homepage More Supply

Detailed Description

Quick Details

Condition: New
Type: Coating Production Line
Substrate: Aluminum
Coating: Coil Coating
Place of Origin: Zhejiang, China (Mainland)
Brand Name: Geartech
Model Number: 100232
Voltage: 380V
Power(W): 380KW
Dimension(L*W*H): 120*12*12m
Weight: 800tons
Certification: CE

Packaging & Delivery

Packaging Details:	wooden case and pe film
Delivery Detail:	90days

Specifications

1. Coating thickness is stable by using rolling coater
2. The paint can be PVDF, PE and AC
3. With multi-module PLC control

Product Name: JETDC-1300CL/JETDC-1600CL Aluminum Coil Coating Line

Application of product and characteristics:

Color coated aluminum coil, which was finished through degreasing, cleaning, passivation, coating and baking, are mainly used in fields of construction decoration such as ACP and ceiling etc.

1. Coating thickness is stable by using rolling coater
2. The paint can be PVDF, PE and AC
3. With multi-module PLC control system
4. Heating and drying system and drying system with natural gas or diesel oil

Multifuction:

1) Can make cleaning and coating both separately and continuously;

2) Can make rewinding separately

Main Parameters:

Raw material	1100 3003 5005 H18 H24
Paint	PVDF, PE, AC
Size	Thickness: 0.06-1.5mm; Width: 800-1600mm
Weight of coil	3MT(Max)
Production speed	10-30m/min
Speed of uncoil	35 m/min
Connecting time	≤5min
Noise	≤80db
Thickness of coating	10-50 um±2um

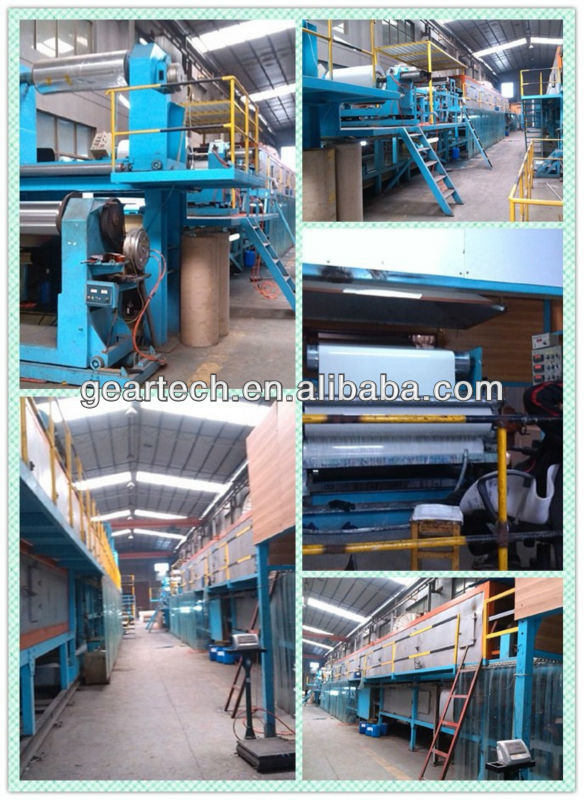

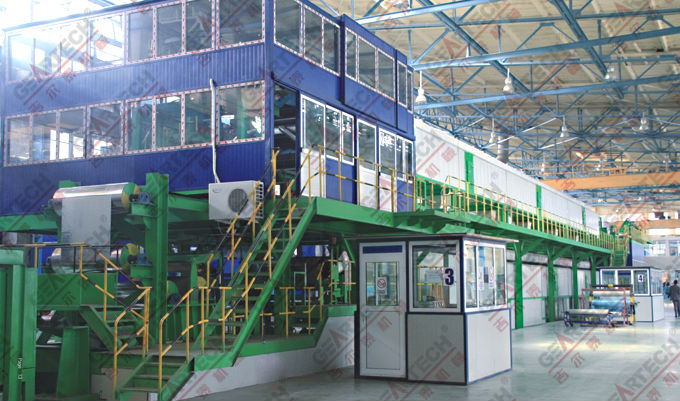

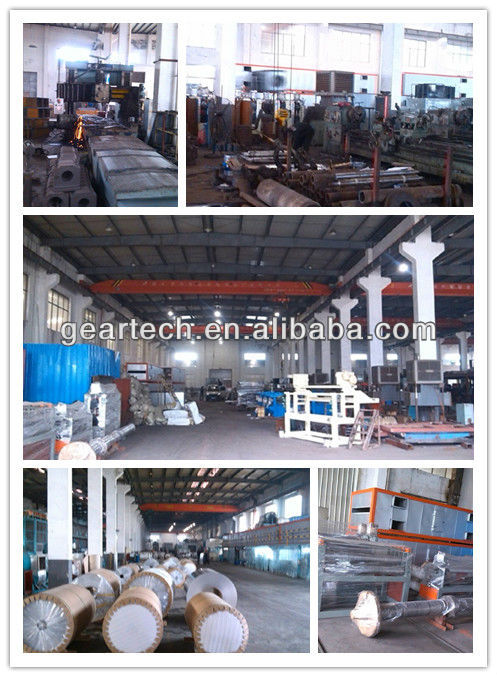

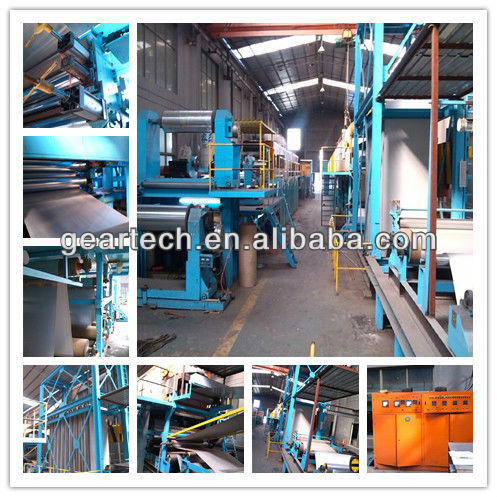

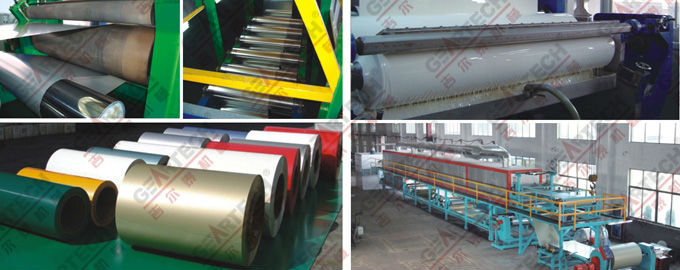

CAMPANY AND WORK SHOP PHOTO SHOW:
