Spare Parts Diode Laser Hair Removal ，OEM Diode Laser Hair Removal Machine，OEM Diode Laser Hair Removal Machine
Specifications
1. Diode laser chips all from Germany, give light stable.
2. High integrated central control circuit, intelligent system.

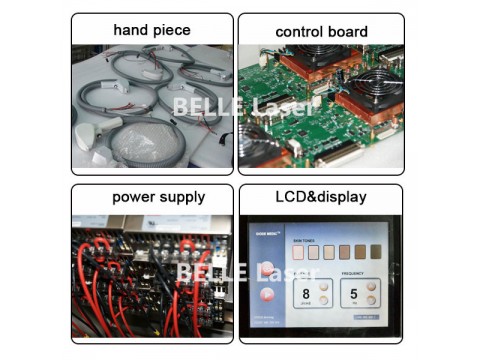

•HAIR REMOVAL HANDLE PIECE ASSEMBlY
•POWER SUPPLY, CONTROL, SOFTWARE
Belle Laser also provides electronic products for the laser stacks and handle piece, including power supply (laser diode driver), MCU based control board, LCD and software for OEM / ODM clients.
|
Part Name |
Function Description |
|
Laser Diode Driver |
1) Provide constant current control for laser pulses with excellent pulse shape. 2) Designed with analog modulation and external control interface. 3) High efficiency without extra cooling. 4) Designed with laser diode protection circuits for safe operation. |
|
MCU Control Board |
1) Control laser diode driver, pump, fans and all the other parts of the system. 2) Control peltier cooler to reach -5 centigrade~+5 centigrade for Skin Cooling 3) Communication with LCD screen. |
|
LCD & Software |
1) Provide simple & easy user control interface with touch-screen. |
1. These products are designed for OEM manufacturers or distributors for easy system integration.
2. Most of these spare parts are CE qualified.
• DIODE LASER HAIR REMOVAL WHOLE SYSTEMS
|
Laser Type |
Diode Laser |
|
Cooling |
TEC + sapphire cooling tip |
|
Wavelength |
808nm |
|
Spot size |
10mm x 16mm |
|
Energy |
0~120J/cm2(Max 120J/cm2 with software limit) |
|
Pulse width |
25-400ms |
|
Repetition rate |
1-10Hz |
|
Electrical |
110~220VAC, 50~60 Hz (Optional) |
|
Cooling Liquid |
Purified & distilled Water |
|
LCD Screen |
8" Touch LCD |
|
Weight |
40kg |
More Information, please feel free to contact us.
