ABSTRACT:

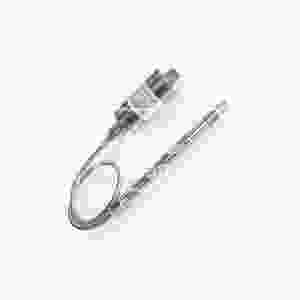

Insulated by rigid or flex tube.Applying to pressure measuring and controlling of Rubber, Chemical fiber, Petro-chemical and other special occasions.
|
PARAMETERS: |
|
Capacity Range:0-1-150MPa |
|
Comprehensive Precision： 0.1%FS, 0.2%FS, 0.3%FS, 0.5%FS, 1.0%FS |
|
Output Signal: 2mV/V; 2.5mV/V; 3.3mV/V; 4~20mA; 0~5V; 1~5V; 0~10V |
|
Use Temp Range:-10~200℃-400℃ |
|
Excitation Voltage: Transducer =10V (6～12)V;Transmitter=24V (9～36)V;Transmitter=15~36V |
|
Insulation Resistance: ≥2000MΩ,100VDC |
|
Eletric Connection: 6 gilded pin / 5 pin |
|
Thread connection:1/2-20UNF or Others |
|
EXAMPLE: PT111 - 35M - 01 - C - G - 6 / 18 - J - W |
||||||||||
|
PT1 |
11 |
35 |
M |
01 |
C |
G |
6 |
18 |
J |
W |
|
11 |
Models |
|||||||||
|
35 |
Capacity(Noted by number) |
|||||||||
|
M |
Pressure Mearsure ( P=Psi, B=Bar, M=MPa ) |
|||||||||
|
01 |
Output Signal (01=2mV/V, 02=2.5mV/V, 03=3.3mV/V, 04=4~20mA, 05=1~5V, 06=0~5V, 07=0~10V ) |
|||||||||
|
C |
Precision （%FS）(B=0.2, C=0.3,D=0.5, E=1.0 ) |
|||||||||
|
G |
Thread Connection (F=M12×1,G=M14×1.5,H=1/2-20, L=M18×1.5,M=M22×1.5, N=M28×1.5, P=G3/4, Q=G3/8 ) |
|||||||||
|
6 |
Length of Rigid Stem( 2 =2.36“, 60mm,6=6”, 152mm) |
|||||||||
|
18 |
Length of Flexible Tube(18=18“, 460mm,blank= none) |
|||||||||
|
J |
Thermcouple option (J, K, E, PT100 ) |
|||||||||
|
W |
Electric connection(W=5pin, L=6pin ) |
|||||||||
