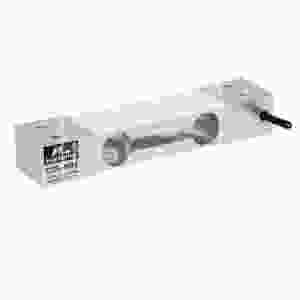

Main features: The product is made of alloy aluminum. It is hermetically sealed with glue to IP65, surface anodized and anti-corrosion, integral structure and easy installation. The product is suit for electronic top scale, floor scale and other weighing equipment.
|
Parameters: |
||
|
Precision : C2/C3 |
Temp. effect on span(%F.S/10℃): ±0.02/±0.014 |
|
|
Comprehensive error(%F.S) : ±0.02/±0.017 |
Temp. effect on zero(%F.S/10℃) : ±0.03/±0.017 |
|
|
Rated output(mv/v) : 2.0±0.2 |
Compensated temp. range(℃ ) : -10～+40 |
|
|
Creep(%F.S/30min) : ±0.02/±0.017 |
Use temp. range(℃ ) : -20～+60 |
|
|
Zero balance(%F.S) : ±1.0 |
Excitation voltage(V) : 9～12(DC) |
|
|
Input resistance(Ω) : 405±10 |
Safe overload (%F.S) : 120 |
|
|
Output resistance(Ω) : 350±3 |
Ultimate overload (%F.S) : 150 |
|
|
Insulation resistance(MΩ) : ≥5000(100VDC) |
Defend grade : IP65 |
|
Installation size (mm):
Red: Input ( ＋ ) 111 White: Output ( － )
Black: Input ( － ) 111 Green: Output ( ＋ )
Notes：It used 4-core shielded cable(φ5×3000mm)
