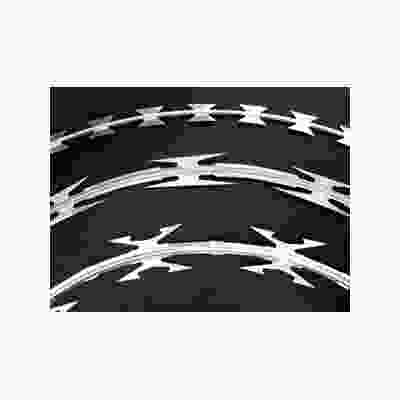

Razor barbed wire/Razor wire/Concertina razor barbed wire
Type:Hot dipped razor barbed wire mesh, Electro galvanized razor barbed wire , Stainless steel razor barbed wirePresentation Form: Crossed razor barbed wire, single coil razor barbed wire
1.Crossed Razor Barbed Wire
Two pieces of stainless razor wire or zinc-coated razor wire were bounded together by clips to make it more strength.The spiral intersecting barbed wire presents an intersecting shape after opening with beautiful feature and practicality.
2.Single coil razor Barbed Wire
Single coil razor barbed type wire is installed without clips, it runs in natural loops on walls. Costless and can be easily installed.CBT-60 and CBT-65 are normally used in production of single coil razor barbed wire
Common Size
| Reference Number |
Thickness |
Wire Dia |
Barb Length |
Barb Width |
Barb spacing |
|
BTO-10 |
0.5±0.05 |
2.5±0.1 |
10±1 |
13±1 |
26±1 |
|
BTO-12 |
0.5±0.05 |
2.5±0.1 |
12±1 |
15±1 |
26±1 |
|
BTO-15 |
0.5±05 |
2.5±1 |
15±1 |
15±1 |
33±1 |
|
BTO-18 |
0.5±0.05 |
2.5±0.1 |
18±1 |
15±1 |
33±1 |
|
BTO-22 |
0.5±0.05 |
2.5±0.1 |
22±1 |
15±1 |
34±1 |
|
BTO-28 |
0.5±0.05 |
2.5±0.1 |
28±1 |
15±1 |
45±1 |
|
BTO-30 |
0.5±0.05 |
2.5±0.1 |
30±1 |
18±1 |
46±1 |
|
CBT-60 |
0.6±0.05 |
2.5±0.1 |
60±2 |
21±1 |
100±2 |
|
CBT-65 |
0.6±05 |
2.5±1 |
65±2 |
21±1 |
100±2 |
| Barbed Tape Wire Specification | ||||
|
Loop Outside Diameter |
No. of Loops |
Standard Length per Coil |
Type |
Notes |
|
450mm |
33 |
7-8M |
CBT-60.65 |
Single coil |
|
500mm |
56 |
12-13M |
CBT-60.65 |
Single coil |
|
700mm |
56 |
13-14M |
CBT-60.65 |
Single coil |
|
960mm |
56 |
14-15M |
CBT-60.65 |
Single coil |
|
450mm |
56 |
8-9m(3 CLIPS) |
BTO-10.12.18.22.28.30 |
Cross type |
|
500mm |
56 |
9-10M (3 CLIPS) |
BTO-10.12.18.22.28.30 |
Cross type |
|
600mm |
56 |
10-11M(3 CLIPS) |
BTO-10.12.18.22.28.30 |
Cross type |
|
600mm |
56 |
8-10M (5 CLIPS) |
BTO-10.12.18.22.28.30 |
Cross type |
|
700mm |
56 |
10-12M (5 CLIPS) |
BTO-10.12.18.22.28.30 |
Cross type |
|
800mm |
56 |
11-13M (5 CLIPS) |
BTO-10.12.18.22.28.30 |
Cross type |
|
900mm |
56 |
12-14M (5 CLIPS) |
BTO-10.12.18.22.28.30 |
Cross type |
|
960mm |
56 |
13-15M (5 CLIPS) |
BTO-10.12.18.22.28.30 |
Cross type |
|
980mm |
56 |
14-16M (5 CLIPS) |
BTO-10.12.18.22.28.30 |
Cross type |
Usage: Razor Wire mainly serves in protecting of grass boundary, railway, highway and also widely used in military, jail and other national Security Organizations, and industry, agriculture, animal husbandry, dwelling house, also used as fence for cottage as society fence and other private buildings.
Package: weaving bag, carton, or according to customers requirements
