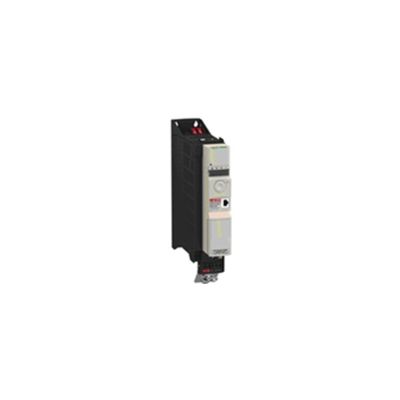

Altivar 12 - Drives for simple machines from 0.18 to 4 kW
A design focussed on integration
- Advanced functions for increased productivity (integrated PID, multi-speed, etc.)
- Easy communication with all other machine components via integrated universal Modbus serial
link - Smaller footprint, notably in terms of the depth of equipment, as the baseplate mounted version dissipates heat into the machine
frame
No compromise on quality
Ever higher performance for your motors ensured by:
- The factory settings, which provide a high quality drive from the very first time the power is turned on
- The integration of Standard (U/f), Performance (sensorless flux vector control, or SVC) and Pump/Fan (quadratic profile Kn²) control profiles
- High dynamic performance on acceleration as well as on braking
- Excellent speed regulation on machine load surges
- Reduced noise and maintenance
Designed for easy fitting and wiring of the drive:
- Easy access angles
- Numerous, easy to identify markings
- Fast detection and protection against motor current peaks (common in motor switching and catch on the fly applications)
- Perfect integration of single-phase 240 V model into the electrical network thanks to its built-in EMC filter
Save time on wiring
- Easy access to all the wiring and settings on the front panel
- Easy access angles
- Only one screwdriver needed for all connections
Save time on programming
- A navigation button for easy menu access: configure your application parameters in just a few clicks
- A three-level menu structure
- Reference Mode: In local operation (On/Off buttons) and for speed adjustment and display
- Monitoring Mode: For displaying parameters (create your own menu)
- Configuration Mode: For configuring your applications and settings
Save time on commissioning
- The drive can be configured before it is received (by the distributor), during storage (by the storekeeper) or during fitting before the electrical enclosure is powered up for the first time
- No adjustment is required and there is a quick start guide for immediate setup
- Ease of programming: Work in the language of your choice
- SoMove software for configuring on PC and transferring the configuration via Bluetooth® or using a cable
- SoMove Mobile software for modifying or sending a configuration remotely via mobile phone
Discreet in size but big on performance!
The Altivar 11 range is replaced by the Altivar 12 range.
Variable speed drives for small machines with three-phase 240 V asynchronous motor
0.18 to 0.75 kW, 120 V single-phase power supply
0.18 to 2.2 kW, 240 V single-phase power supply
0.18 to 4 kW, 240 V three-phase power supply
- Can be configured in its packaging
- Quick start option requiring no adjustment
- Intuitive navigation
- Even more compact
- Category 1 EMC filter
- Local control on the front panel
- Modbus serial
link - Resistant to harsh operating environments
- Simple machines for industry
Material handling (small conveyors, etc.)
Packaging (small labelling machines, small bagging machines)
Pumping applications (suction pumps, centrifugal pumps, circulating pumps, etc.)
Machines fitted with fans (air or smoke extraction, plastic film making machines, ovens, boilers, etc.) - Simple consumer machines
Handling (access barriers, rotating advertising hoardings)
Health (medical beds, running machines)
Food and drink (mills, kneading machines, mixers, etc.) - Other types of application
Food and drink (battery farming, greenhouses, etc.)
Mobile machines and small devices equipped with a power socket
Applications which traditionally use other solutions (2-speed DC motors, mechanical drives...)
Lexium 32i - Integrated servo drive from 0.6 to 2.2 kW
Simplicity
- Thanks to our on-line configurator, it is easy to selec the four catalogued components which will make your Lexium 32i dedicated to your application.
- The four components are very easy to assemble, simply click on each component and secure.
- Settings can be stored on the optional memory card. Simply insert the card to recall them.
Flexibility
- Create your own product to suit your needs by using a combination of the four components to build a product that meets your specific application requirements.
- Connector modules are available with industrial connector or terminal connector module which can be mounted on top or rear side of the product.
Cost efficiency
- Reduce cabinet space by up to 60%: Unlike traditional servo drives that are installed in a cabinet, the Lexium 32i servo drive is installed directly on the machine to help you improve cost and energy efficiency.
- Reduce energy costs by up to 30% due to less cabinet cooling, energy-efficient motor and drive technology, no need for motor cable and cabinet space for the drive
- Reduce assembly time with simplified wiring and easy cabling
If cabinet space is not an issue, the Lexium 32 servo range might be your drive of choice: It consists of three high-performance book-size servo drive models and two motor families.
Simplicity
- Easy to choose via online configurator
- Easy to assemble in less than 3 minutes
- Easy to integrate and maintain
Flexibility
- Custom-made product based on standard components
- Flexible cable mounting
Cost efficiency
- Smaller cabinets
- Reduced wiring
- Energy-efficient motor and drive technology
