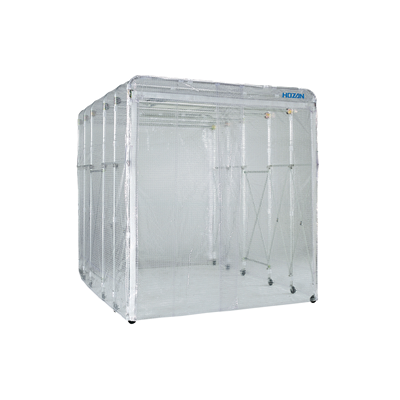

Clean booths CL-901

<Specification>

●Fan filter unit（FFU）：

　Rated voltage and frequency・・・AC100V 50/60Hz

　Power consumption・・・60/64Ｗ（50/60Hz）

　Filter type・・・HEPA（Main filter）・Nonwoven fabric（Prefilter）

　Trapping efficiency・・・0.3μm 99.97% or more

　Ejecting air volume・・・9.0/10.5m3/min（50/60Hz）

　Ejecting wind speed・・・0.4/0.5m/s（50/60Hz）（HEPA/Prefilter when mounted）

　Weight・・・12kg（HEPA/Prefilter when mounted）

●Booths：

　External dimensions・・・2000（Ｗ）×2200（H）

<Features>

●The frame is the same material as the metal bat.

●Because it is used the sheet kneaded antistatic agent, it does not repel dust.

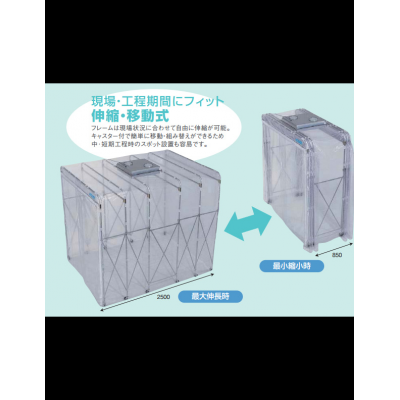

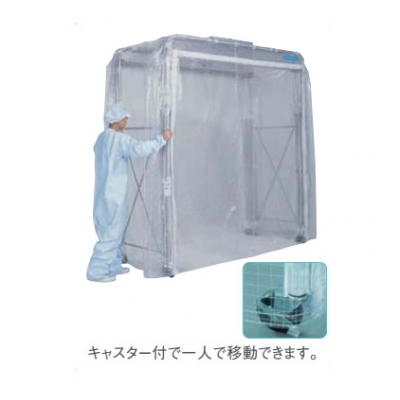

●Fit, stretch-mobile on the scene and process period：The frame can be telescopic freely to suit the site conditions.Because it can be moved easily by rearranging a caster,spot installation of medium-and short-time process is also easy.

●Applications of partition mechanism spreads：If you put a partition curtain (CL-901-4) in the booth,it can be used for various purposes.Use in the preparation room and changing rooms spreads.

●Wide spacious work space wide variety：booths volume is 3.3～11m3。



●Sheet material：Enhanced fiber-filled PVC sheet（kneaded antistatic agent）

●Frame material：Aluminum

●Replacement part：Fan filter unit（CL-901-1）・Prefilter（CL-901-3）・ＨＥＰＡ filter（CL-901-2）・Sheet for clean booths（CL-901-7）・One set of frame（CL-901-8）

●Option：Partition curtain（CL-901-4）・Attached tape（CL-901-5）

●Related product：Clean sticky mat（CL-930）
