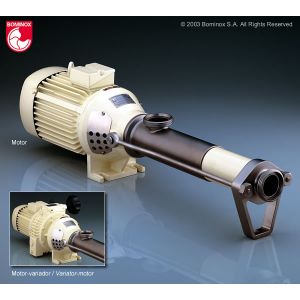

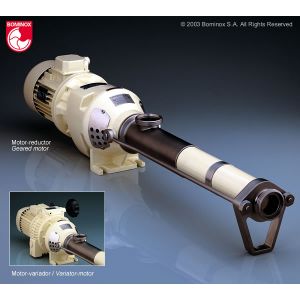

ROTOR-M - Monobloc positive displacement spiral impeller pump
| Flow rate |
Q = 0.5 to 20 m3/h |
| Total head |
H = 5 to 60 mwc |
| Motors |
P = 0.5 to 7.5 hp
(0.37 to 5.5 kW) |
| Motor velocity |
n = 100 to 1500 rpm |
| Maximum viscosity |
V = 100000 cP |
| Temperature |
T = 80ºC
(special 110ºC) |
| Material |
AISI-316L |
| Aplications |
Cream, custard, syrups, jams, molasses, cosmetics and pastes etc.
Water, wine, oil and juices etc. |
|
ROTOR-2/M - Twin-stage monobloc positive displacement spiral impeller pump
| Flow rate |
Q = 0.5 to 18 m3/h |
| Total head |
H = 5 to 120 mwc |
| Motors |
P = 1 to 10 hp
(0.75 to 7.5 kW) |
| Motor velocity |
n = 100 to 1500 rpm |
| Maximum viscosity |
V = 100000 cP |
| Temperature |
T = 80ºC
(special 110ºC) |
| Material |
AISI-316L |
| Aplications |
Nata, crema, jarabes, mermeladas, melazas, cosméticos, pastas, etc.
Agua, vino, aceites, zumos, etc. |
|
|

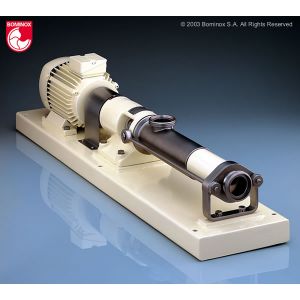

ROTOR-S - Free shaft positive displacement spiral impeller pump
| Flow rate |
Q = 0.5 to 20 m3/h |
| Total head |
Single stage:
H = 5 to 60 mwc
Twin stage:
H = 5 to 120 mwc |
| Motors |
P = 0.5 to 10 hp
(0.37 to 7.5 kW) |
| Motor velocity |
n = 100 to 1500 rpm |
| Maximum viscosity |
V = 100000 cP |
| Temperature |
T = 80ºC
(special 110ºC) |
| Material |
AISI-316L |
| Aplications |
Cream, custard, syrups, jams, molasses, cosmetics and pastes etc.
Water, wine, oil and juices etc. |
|
