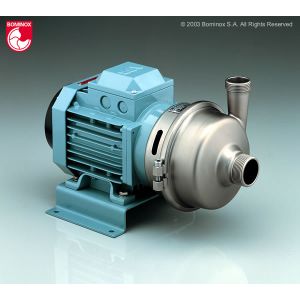

SIMPLEX-M - Simplified centrifugal pump
Patented:
Utility Model No 9101925
Utility Model No 286465 |
| Flow rate |
Q = 1 to 30 m3/h |
| Total head |
H = 5 to 35 mwc |
| Motors |
P = 0.5 to 4 hp
(0.37 a 3 kW) |
| Temperature |
T = 80ºC
(Special seal 120ºC) |
| Material |
AISI-316L |
| Aplications |
Water, wine, brine and juices etc. |
|

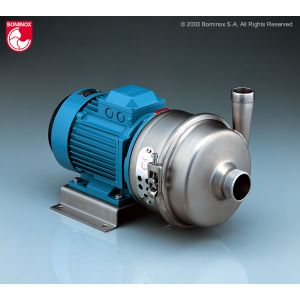

STAMP-STN - Cold pressed centrifugal pump
| Flow rate |
Q = 1 to 45 m3/h |
| Total head |
H = 5 to 40 mwc |
| Motors |
P = 0.5 to 5.5 hp
(0.37 to 4 kW) |
| Temperature |
T = 80ºC
(special seal 120ºC) |
| Material |
AISI-316L |
| Aplications |
Water, wine, alcohol and juices etc. |
|
|
MINOX-01 - Monobloc centrifugal pump
| Flow rate |
Q = 1 to 150 m3/h |
| Total head |
H = 5 to 100 mwc |
| Motors |
P = 0.5 to 30 hp
(0.37 to 22 kW) |
| Temperature |
T = 100ºC
(special seal 130ºC) |
| Material |
AISI-316L |
| Aplications |
Water, beer, wine, juices, syrups and whey etc.
Acids, salts and solvents etc. |
|
SOLID-ATEX - Ex-proof centrifugal pump
| Flow rate |
Q = 1 to 150 m3/h |
| Total head |
H = 5 to 100 mwc |
| Motors |
P = 0.5 to 30 hp
(0.37 to 22 kW) |
| Temperature |
T = 150ºC |
| Material |
AISI-316 |
| Aplications |
Chemical, petrochemical, pharmaceutical, food Industries and others. |
| Zones |
1, 2, 21, 22 |
| Class |
T5/T4/T3, T100/T135/T200 |
|
