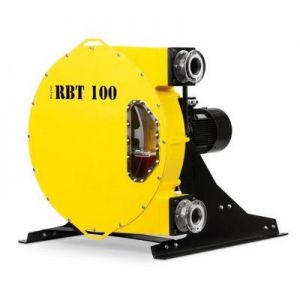

Peristaltic pumps RBT Series
Fluid handling pumps and equipment
Industrial peristaltic pump, reinforced rubber hose system for working pressupres to 15 bar.
Available flow from 100 to 36.000 l/h, different driver options available for fixed or variable speed, ANSI or DIN flange connections available.
Shoes press system with internal lubricant liquid into the pump body.
Heavy duty design with integrated ball bearing box into the pump body.
Operating principle
The operating principle of a peristaltic pump attracts by its simplicity and advantages.
A tubular element with accurate dimensions, made in different types of elastomer or thermoplastic, is housed into the pump body.
When this tubular element is compressed by the rotary action of the rotor and its corresponding rollers or shoes, it recovers its initial shape creating a vacuum, suctioning this way the fluid.
The fluid gets into the cavity formed by the rollers that press the tube, and is gently pushed to the outlet by the following roller. Therefore, the pump is a positive displacement volumetric pump with exceptional features.
