Video Measuring Machine VMV



单价 面议对比
询价 暂无
浏览 98
发货 AsiaChina预售,付款后15天内
过期 长期有效
更新 2013-08-06 12:02

联系方式
加关注0

Guiyang SUNPOC Co.,Ltd.

VIP   Company第8年
资料未认证
保证金未缴纳
  • Asia-China
  • 上次登录 2013-10-12
  • wendy (女士)
详细说明
 A video measuring system is a kind of measuring instrument, by means of CCD imaging and magnifying the work-piece image to the software system, and by using various measuring functions in the strong software system  to realize microscope and quality control for the sizes, positions and forms of the measured piece. It is widely and suitably used in measurement services at various levels or workshops’ inspection stations in various industries of electronics, instruments and meters, cutting-tools and gripping devices, precision machine elements, precision hardware pieces, electronic components, plastic and rubber finished products, semiconductor components, punching pieces, socket connectors, die equipment, automobiles, machining operation, military industry, aerospace, etc. and colleges and universities, scientific research institutes, etc.

  Specification list:

Model

VMV-1510

VMV-2010

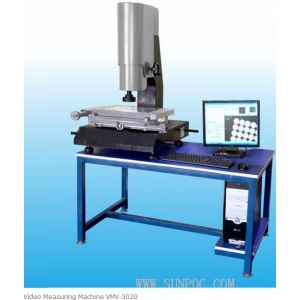

VMV-3020

VMV-4030

VMV-5040

XZ travel range

150x100x200

200x100x200

300x200x200

400x300x200

500x400x200

Z move range

200mm

200mm

200mm

200mm

200mm

XY resolution

0.001mm

0.001mm

0.001mm

0.001mm

0.001mm

Lens magnify

0.7~4.5X

0.7~4.5X

0.7~4.5X

0.7~4.5X

0.7~4.5X

Image magnify

20X~266X

20X~266X

20X~266X

20X~266X

20X~266X

Object visual field

10~1.6mm

10~1.6mm

10~1.6mm

10~1.6mm

10~1.6mm

Accuracy

3+L/200um

Lens

China High Quality Lens

CCD

430,000 pixel color (SONY CMOS chip)

Measure software

VM 2.5D special video measuring softwareauto-edge finder

Machine base

high quality granites

Light source

profile light and surface light is LED shadow-less lamp

Over size

550x500x 950

550x500x950

650x700x950

750x980x950

800x1050x950

weight

175kg

175kg

190kg

300kg

500kg

computeroptional

2.5G CPU17LCD1G memory160GHDDDVD-ROM

Optional part

0.5X 2X  lens

Free Maintain Time

One year

举报收藏 0评论 0
更多>本企业其它产品

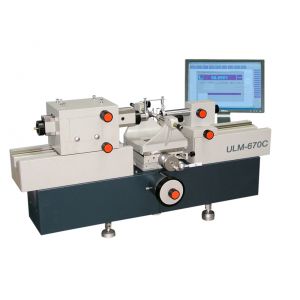

CNC video measuring machine SP-VMC-3020 ULM-670C  Universal Length Measuring Machine
