<Specification>

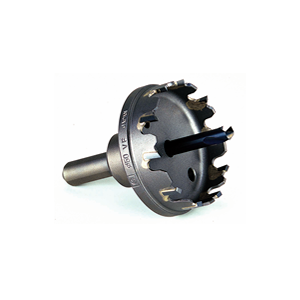

● Number of blades: 3, 4, 6, 8, 10, 12, 14, 16, 18, 20
● Blade diatmer (mm): 14 to 92 by 1mm interval, 92, 95, 100, 102, 105, 110, 115, 120
● Effective length (mm): 4
<Features>
● C-shaped drill center (cobalt HSS) is used. Most suitable for the perforator work for steel plate, stainless plate, copper plate, and aluminum plate, which thickness is less than 4mm.
● T-shaped drill center (with chip carbide drill) is used. Most suitable for drilling FRP, and synthetic resin plate, which thickness is less than 4mm.
<Use for>
● Drilling easily for cutting material of 4 mm or less thickness.
● Compared to high-speed steel blade, drilling can be speedy as you can use the electric motor in high rotation.
● Stainless steel also can be drilled smoothly.
<Note>
● Applicable motor: Electric drill (Please use with a rotary-only function.)
