<Specification>

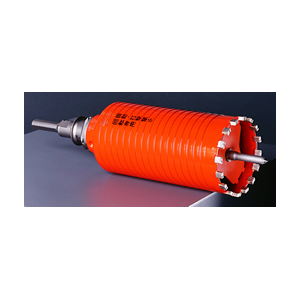

● Effective length (mm): 150
● Cutter length (mm): 180
● Center pin: PCDCP3、PCDCPK
● Blade length (mm): 25, 29, 35, 38, 45, 50, 55, 60, 65, 70, 75, 80, 85, 90, 95, 100, 105, 110, 115, 120, 125, 130, 150, 155, 160, 165, 170, 180, 200, 210, 220
<Features>

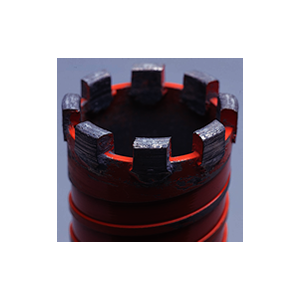

● For drilling reinforced concrete by Dry method. A center pin with carbide ensures positioning.
● Discharge of chips is possible.
<Use for>
● For plumbing of air conditioning, water, gas, electricity, etc..
● For drilling reinforced steel(D13=12.70mm thickness), concrete, PC concrete , and the like, in Dry mode.

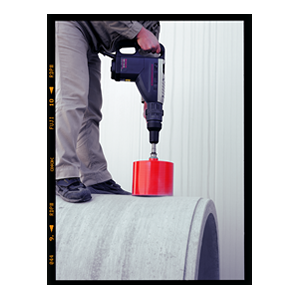

● For perforation of Hume concrete pipe, ceramic pipe, PVC pipe.
<Note>
● Applicable motor: Electric drill (Please use with a rotary-only function.)
